SLVUBG0A July 2018 – March 2021 TPS62810-Q1 , TPS62810M , TPS62811-Q1 , TPS62811M , TPS62812-Q1 , TPS62812M , TPS62813-Q1 , TPS62813M
4 Board Layout
This section provides the TPS62810EVM-015 board layout. The Gerber files are available on the TPS62810EVM-015 tool page

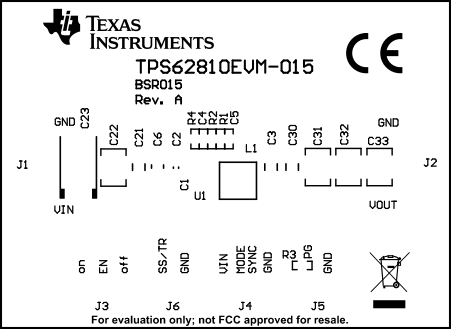

Figure 4-1 Top
Silk
Figure 4-3 Layer
2

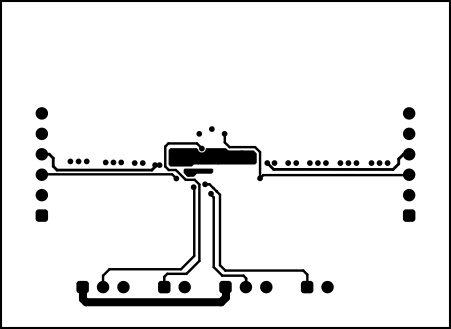

Figure 4-5 Bottom Layer
Figure 4-2 Top
Layer
Figure 4-4 Layer
3
