3.3 PCB Layout

The PCB layers for this EVM are illustrated in Figure 3-3 through Figure 3-6.

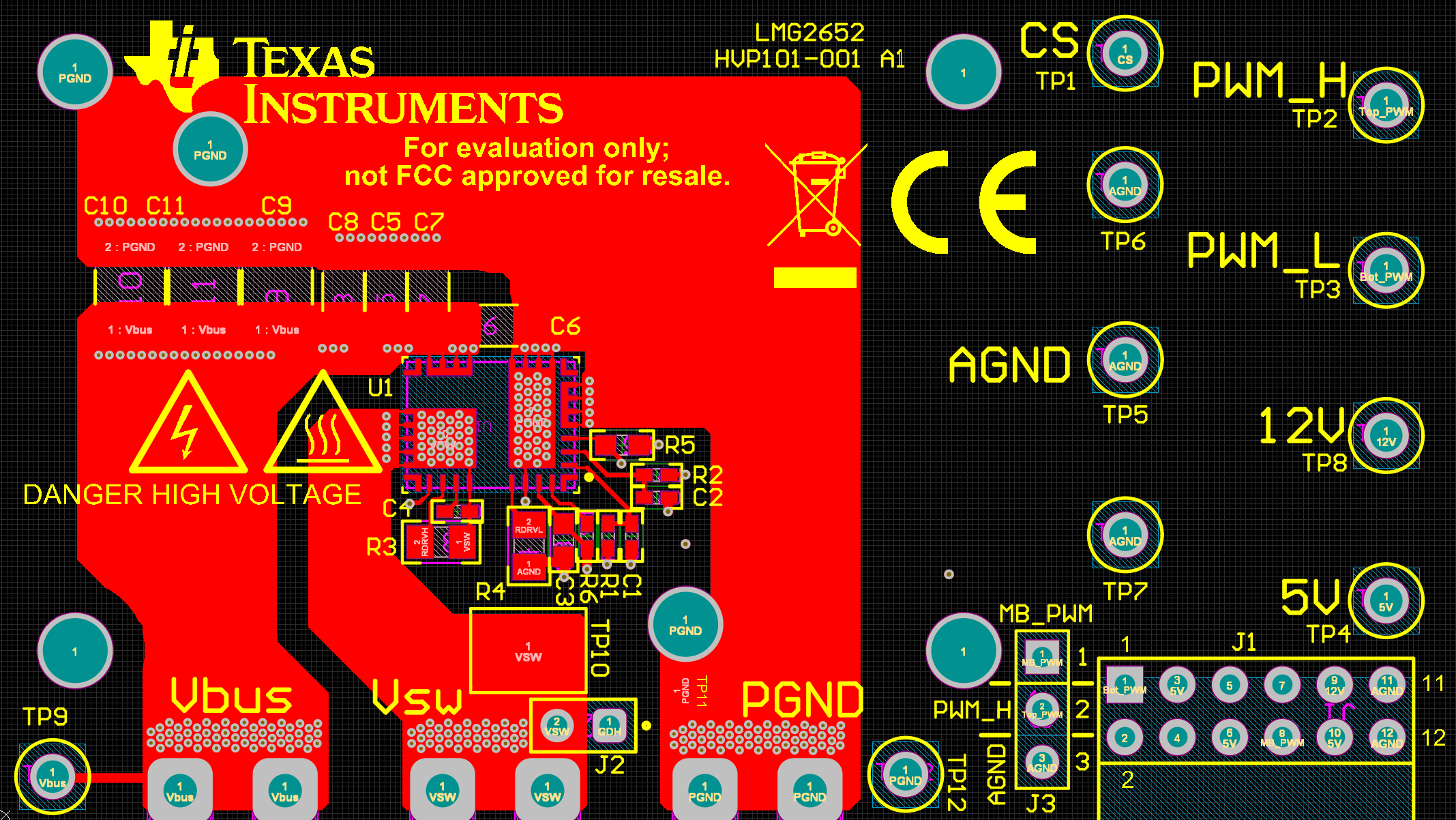

LMG2652EVM-101 Top Layer Figure 3-3 Top Layer

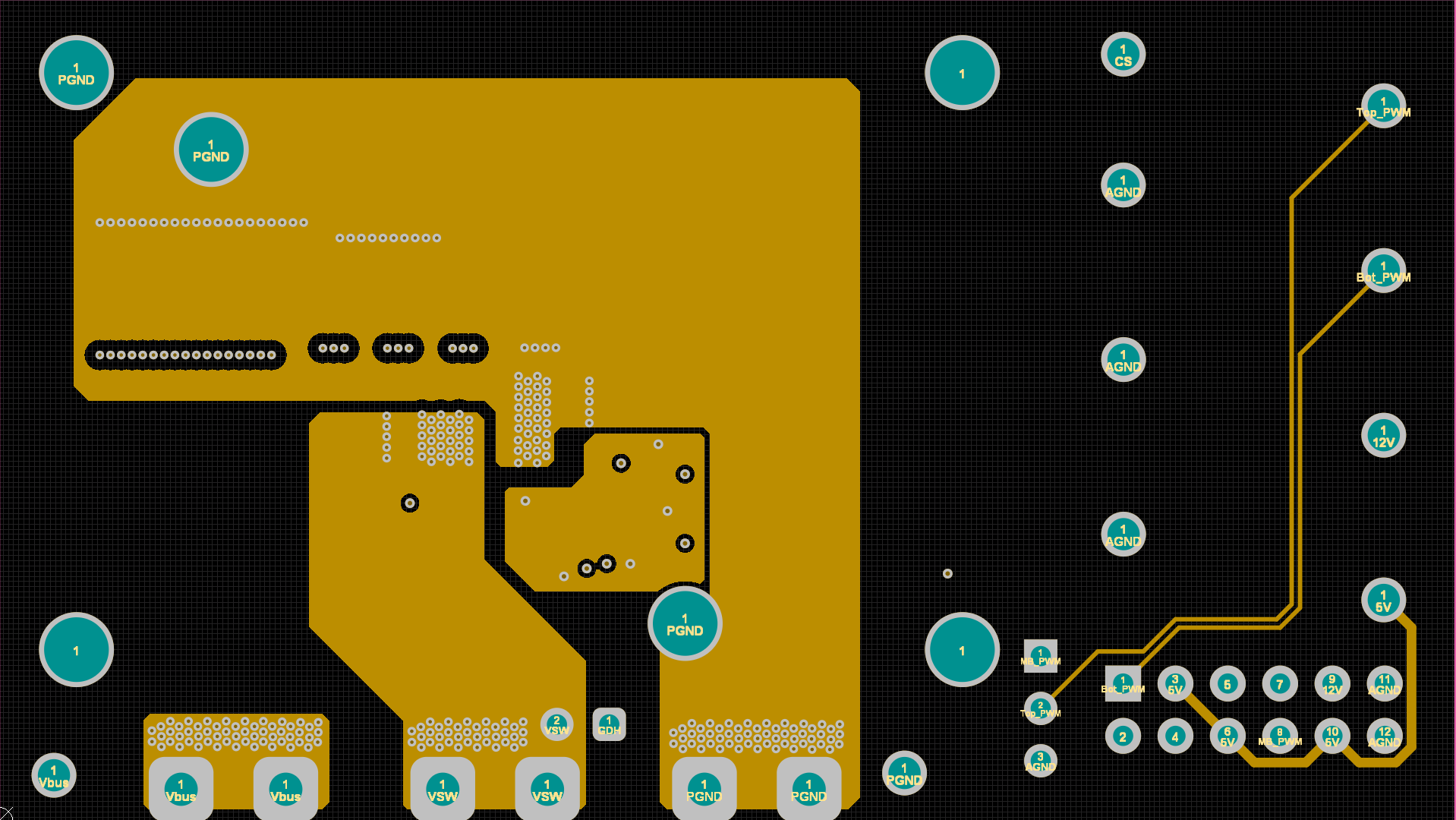

LMG2652EVM-101 Layer 2Figure 3-4 Layer 2

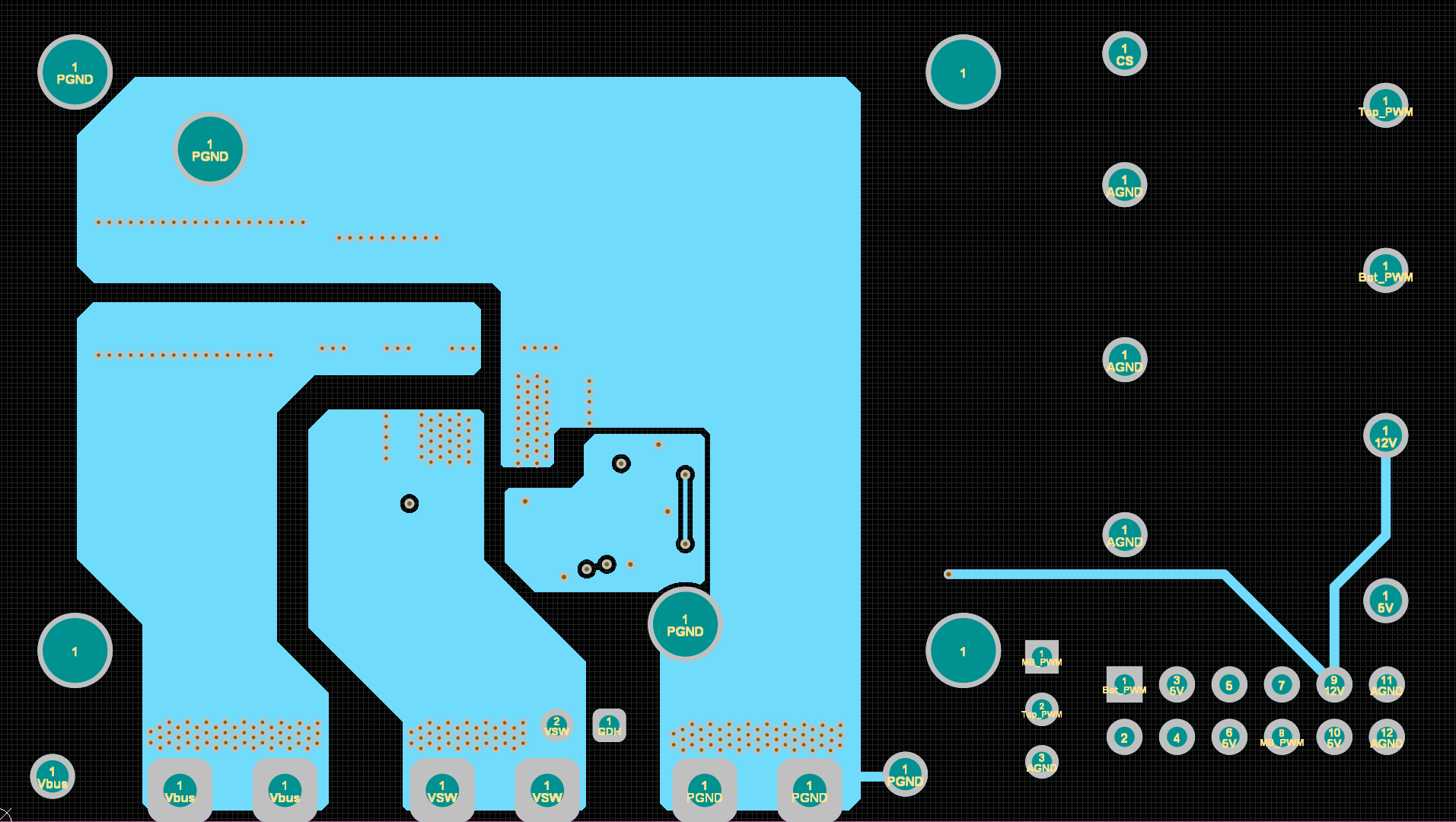

LMG2652EVM-101 Layer 3Figure 3-5 Layer 3

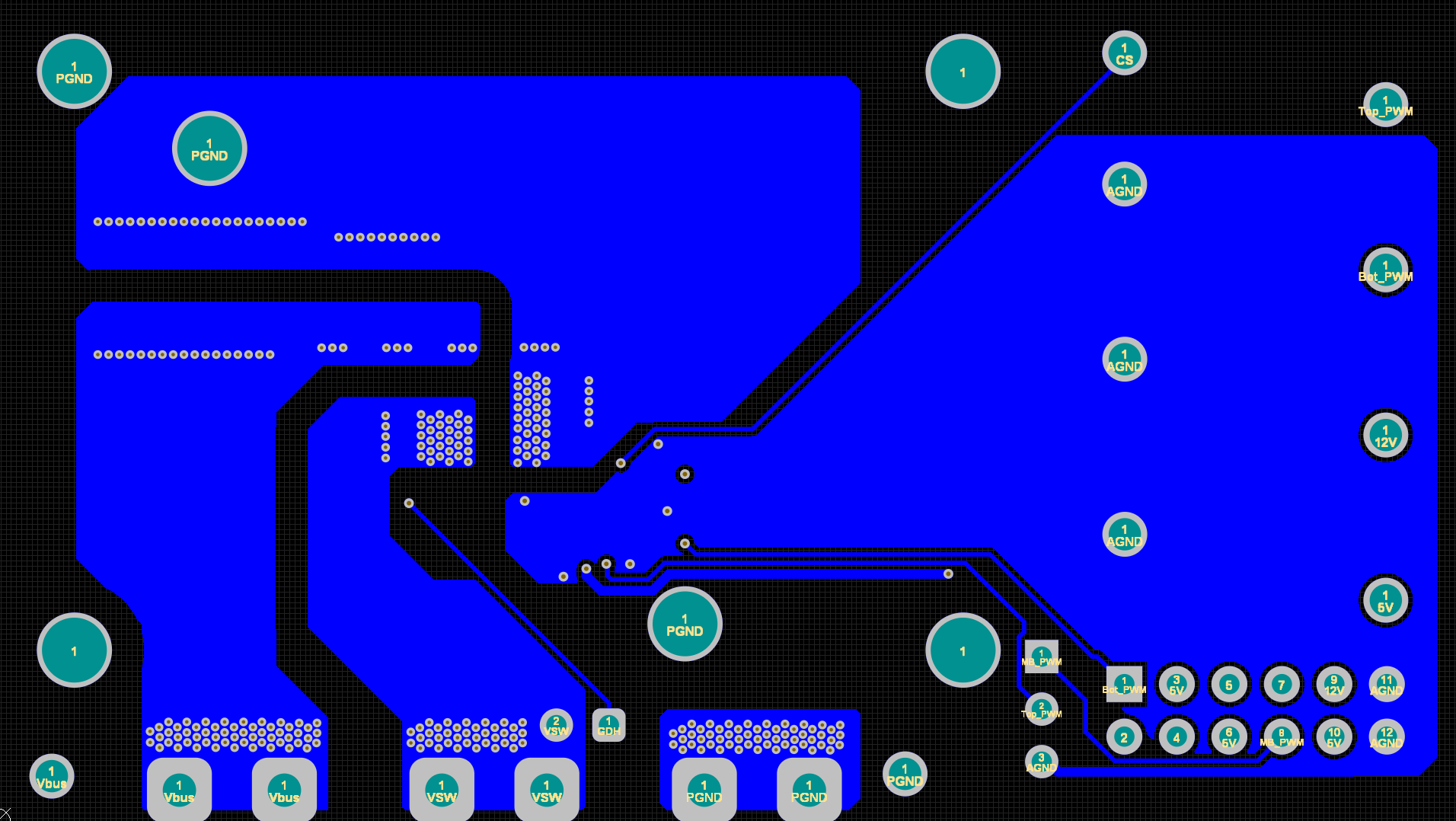

LMG2652EVM-101 Bottom LayerFigure 3-6 Bottom Layer
