  1.   Abstract
  2.   Trademarks
  3. 1Introduction
  4. 2How to Install
    1. 2.1 Update the FreeRTOS Version in the TivaWare Directory
    2. 2.2 Adding FreeRTOS Hardware Driver Files for TM4C LaunchPads
  5. 3Architecture for TM4C FreeRTOS Examples
    1. 3.1 Proper Clock Configuration
    2. 3.2 How to use Hardware Interrupts Alongside the FreeRTOS Kernel
  6. 4Example Project Walkthroughs
    1. 4.1 Download and Import the Examples
    2. 4.2 CAN Examples
      1. 4.2.1 multi_can_rx
      2. 4.2.2 multi_can_tx
    3. 4.3 Hardware Timer Examples
      1. 4.3.1 timer_edge_capture
      2. 4.3.2 timer_edge_count
    4. 4.4 I2C Examples
      1. 4.4.1 i2c_simple_loopback
      2. 4.4.2 i2c_tmp117_demo
    5. 4.5 PWM Examples
      1. 4.5.1 pwm_interrupt
      2. 4.5.2 pwm_invert
    6. 4.6 SSI Examples
      1. 4.6.1 ssi_simple_xfer
      2. 4.6.2 ssi_quad_mode
    7. 4.7 μDMA Examples
      1. 4.7.1 adc_udma_pingpong
      2. 4.7.2 udma_mem_transfer

4.1 Download and Import the Examples

The collateral provided with this application report can either be unzipped into a local directory or kept in the zip format. Both formats can be imported to the CCS.

  1. To import the project into CCS, first select “File” -> ”Import”.

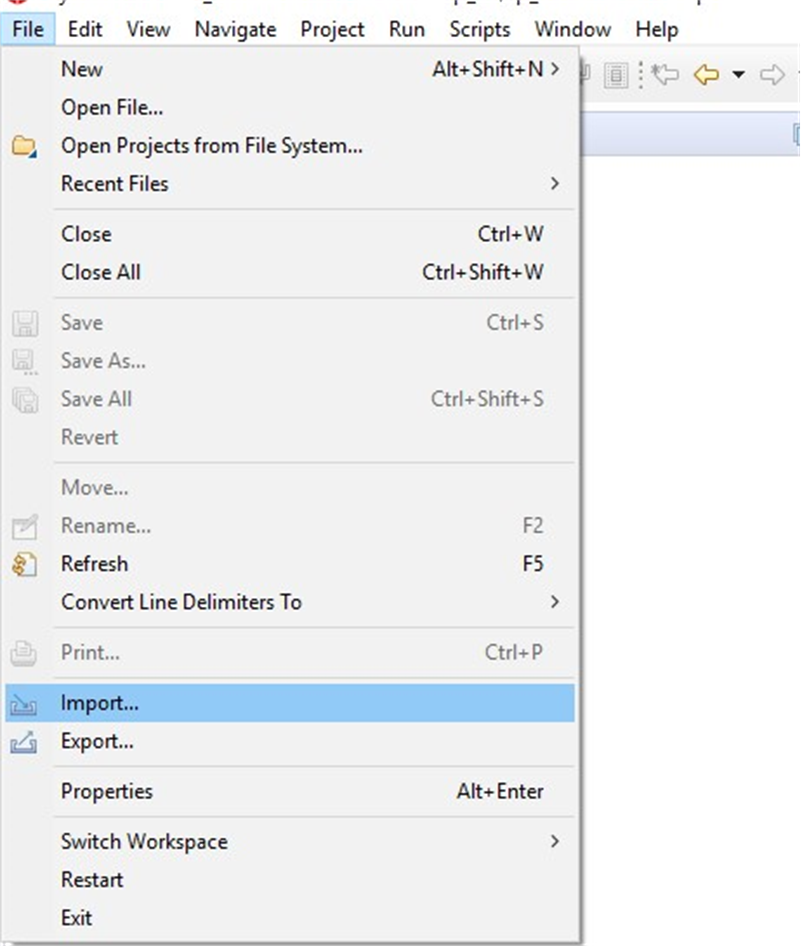

    GUID-20210301-CA0I-NLWK-LWDM-CPC2PRCRPFDW-low.png Figure 4-1 Import CCS Projects Step 1
  2. Select “CCS Projects” to import the examples and then click “Next”.
    GUID-20210301-CA0I-5T62-S6ST-JDBMGFMKKHBH-low.png Figure 4-2 Import CCS Projects Step 2
  3. Next, provide the path to either the unzipped project by selecting the first radio button or import the zip file directly by selecting the second radio button. Click the “Copy projects into workspace”.
    GUID-20210301-CA0I-HTFC-VRSC-ZLZW44B9NXCF-low.png Figure 4-3 Import CCS Projects Step 3
  4. After the project path is provided, discovered projects by CCS will show up. First click the “Select All” button and then click the “Finish” button to complete the import.
    GUID-20220926-SS0I-ZHP6-BMTX-MZDTF5LRNFR6-low.jpg Figure 4-4 Import CCS Projects Step 4
