1.4.2 UDP RAW APIs

Table 1-2 lists lwIP Raw UDP APIs to be used in an application. Figure 1-2 shows the simplified flowchart of the UDP client-server communication using Raw APIs.

Table 1-2 Raw UDP APIs
Function Category API Description
UDP connection udp_new Create a new UDP PCB (Protocol Control Block).
udp_bind Bind the PCB to local IP address and port. The IP address can be specified as IP_ADDR_ANY in order to bind the connection to all local IP addresses.
udp_connect Associate the PCB with the remote UDP peer address.
Receiving UDP data udp_recv Set the callback function that will be called when new data arrives.
Sending UDP data udp_send Send UDP packet to the current remote host associated with the PCB.
udp_sendto Send data to a specified address using UDP.
Closing connection udp_disconnect Remove the remote end of PCB.
udp_remove Remove and deallocate the PCB.

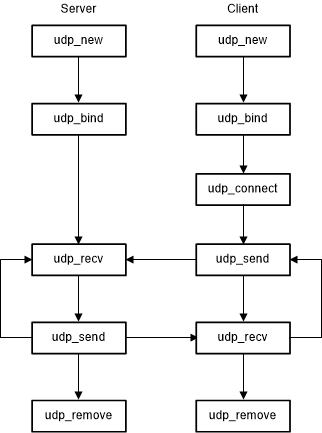

GUID-20210301-CA0I-DJB2-GWSM-RCL1DTM8D5DV-low.gif Figure 1-2 UDP Client Server Communication Using Raw API
