6.12.5.19.4.1 PRUSS ECAP Timing
Table 6-139 PRUSS ECAP Timing Requirements see Figure 6-116
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PREP1 tw(CAP) Pulse Duration, CAP (asynchronous) 2P(1) + 2 ns
PREP2 tw(SYNCI) Pulse Duration, SYNCI (asynchronous) 2P(1) + 2 ns
(1) P = CORE_CLK period in ns.
AM625 AM625-Q1 AM623 AM620-Q1 PRUSS ECAP Timing Figure 6-116 PRUSS ECAP Timing

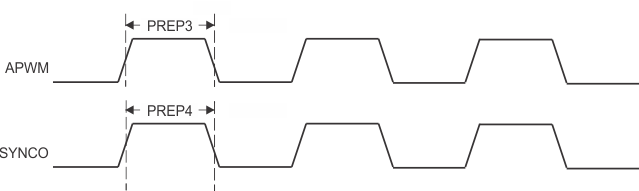

Table 6-140 PRUSS ECAP Switching Characteristics see Figure 6-117
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PREP3 tw(APWM) Pulse Duration, APWM high/low 2P(1) - 2 ns
PREP4 tw(SYNCO) Pulse Duration, SYNCO (asynchronous) P(1) - 2 ns
(1) P = CORE_CLK period in ns.
AM625 AM625-Q1 AM623 AM620-Q1 PRUSS ECAP Switching Characteristics Figure 6-117 PRUSS ECAP Switching Characteristics
