Ceramic leadless chip carrier (LCC) is a quad row package similar to a QFN or QFP with no exposed pad. The leadless packages are available as ceramic (LCCC), while the J-wing leaded packages can be plastic (PLCC) or ceramic (JLCC).

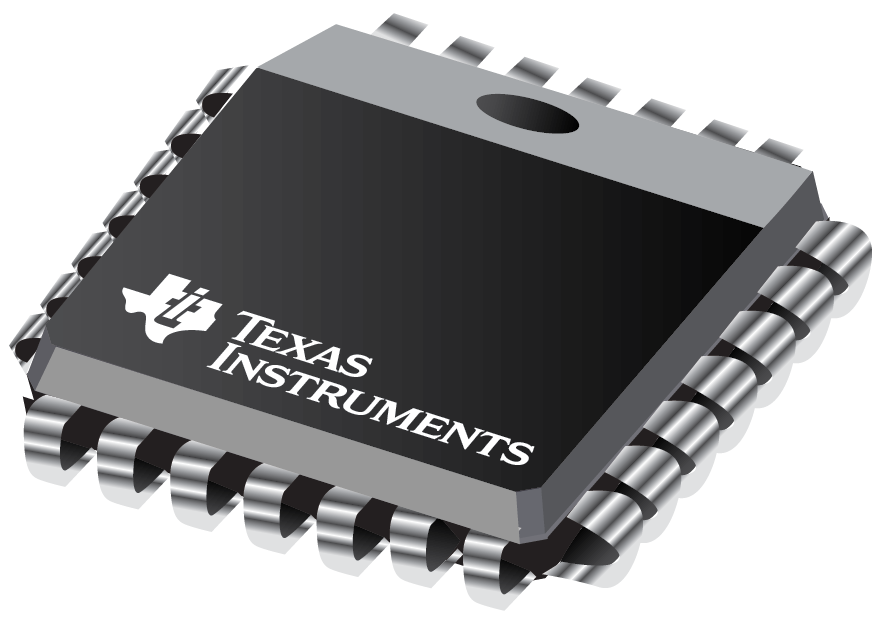

Leaded Chip Carrier (LCC)
30 total package options for the Texas Instruments Leaded Chip Carrier (LCC).
Use the filter panel to further refine your search.
≥
to ≤
≥
to ≤
≥
to ≤
≥
to ≤
≥
to ≤
There are 30 possible matches.
Package family | TI package name | Description | Pin count | Pitch (mm) | Maximum height (mm) | Length (mm) | Width (mm) | Package drawing |
---|
Package family | TI package name | Description | Pin count | Pitch (mm) | Maximum height (mm) | Length (mm) | Width (mm) | Package drawing |
---|---|---|---|---|---|---|---|---|
JLCC | FJ | Ceramic, Metal Chip Carrier | 44 | 1.27 | 1.78 | 16.51 | 16.51 | |
JLCC | FJ | Ceramic, Metal Chip Carrier | 68 | 1.27 | 2.16 | 24.2 | 24.2 | |
JLCC | FJ | Ceramic, Metal Chip Carrier | 68 | 1.27 | 2.16 | 24.2 | 24.2 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 20 | 0.0 | 1.83 | 8.89 | 8.89 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 68 | 1.27 | 2.57 | 24.11 | 24.11 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 28 | 1.27 | 1.83 | 11.43 | 11.43 | |
LCCC | NAJ | Ceramic, Metal Chip Carrier | 20 | 1.27 | 1.753 | 8.89 | 8.89 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 44 | 1.27 | 2.4 | 16.51 | 16.51 | |
LCCC | FK28A | Ceramic, Metal Chip Carrier | 28 | 1.27 | 1.753 | 11.43 | 11.43 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 84 | 1.27 | 1.83 | 29.21 | 29.21 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 68 | 1.27 | 1.83 | 24.11 | 24.11 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 20 | 1.27 | 1.83 | 8.89 | 8.89 | |
LCCC | FE | Ceramic, Metal Chip Carrier | 28 | 1.27 | 1.83 | 13.97 | 8.89 | |
LCCC | FKH | Ceramic, Metal Chip Carrier | 8 | 1.27 | 1.9 | 5.0 | 5.0 | |
LCCC | FFM | Ceramic, Metal Chip Carrier | 12 | 0.0 | 1.66 | 6.2 | 6.1 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 28 | 1.27 | 1.83 | 11.43 | 11.43 | |
LCCC | FFK | Ceramic, Metal Chip Carrier | 14 | 1.27 | 1.66 | 6.0 | 5.5 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 44 | 1.27 | 1.83 | 16.51 | 16.51 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 84 | 1.27 | 2.57 | 29.21 | 29.21 | |
LCCC | FE | Ceramic, Metal Chip Carrier | 18 | 1.27 | 1.7 | 9.02 | 7.37 | |
LCCC | FD | Ceramic, Metal Chip Carrier | 52 | 1.27 | 2.57 | 19.05 | 19.05 | |
LCCC | FK | Ceramic, Metal Chip Carrier | 52 | 1.27 | 1.83 | 19.05 | 19.05 | |
LCCC | FE | Ceramic, Metal Chip Carrier | 32 | 1.27 | 1.83 | 13.97 | 11.43 | |
LCCC | FPM | Ceramic, Glass Chip Carrier | 32 | 1.016 | 1.65 | 10.67 | 10.67 | |
PLCC | FN | Plastic Chip Carrier | 84 | 1.27 | 4.06 | 29.31 | 29.31 | |
PLCC | FN | Plastic Chip Carrier | 20 | 1.27 | 4.06 | 8.96 | 8.96 | |
PLCC | FN | Plastic Chip Carrier | 52 | 1.27 | 4.06 | 19.13 | 19.13 | |
PLCC | FN | Plastic Chip Carrier | 44 | 1.27 | 4.06 | 16.59 | 16.59 | |
PLCC | FN | Plastic Chip Carrier | 28 | 1.27 | 4.06 | 11.51 | 11.51 | |
PLCC | FN | Plastic Chip Carrier | 68 | 1.27 | 4.06 | 24.23 | 24.23 |
