10 Layout

10.1 Layout Guidelines

  • DAC output termination resistors must be placed as close to the output pins as possible to provide a dc path to ground and set the source impedance.
  • Route the LVDS data signals as impedance-controlled, tightly-coupled, matched-length differential traces.
  • Maintain a solid ground plane under the LVDS signals without any ground plane splits.
  • Place a thermal ground pad under the device with an adequate number of vias to the ground planes of the board.

10.2 Layout Example

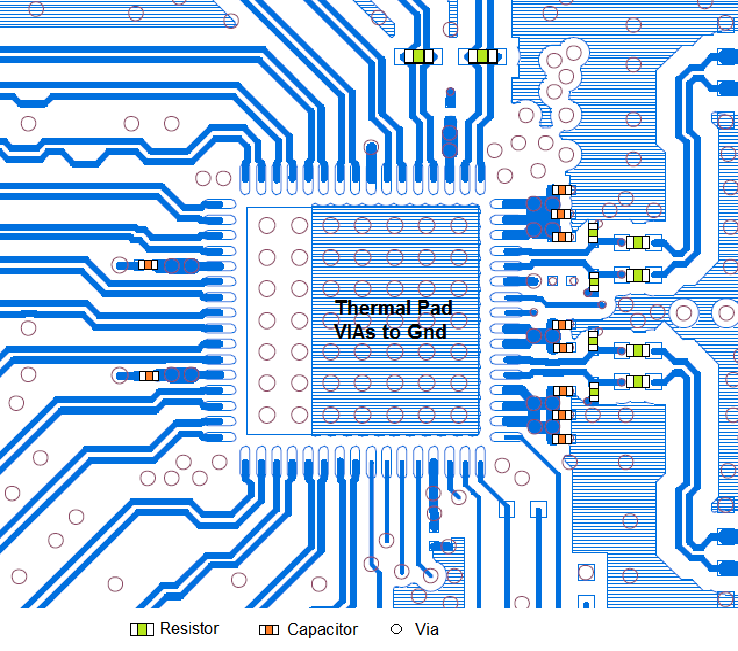

DAC3174 Layout_Example_slas837b.png Figure 59. DAC3174 Layout Example
