6.6 Typical Characteristics

at TA = 25°C, IDS = 2 mA, common-source configuration, and VDS = 10 V (unless otherwise noted)


Figure 6-1 Drain-to-Source Current vs Gate-to-Source Voltage

Figure 6-3 Drain-to-Source Current vs Drain-to-Source Voltage

Figure 6-5 Common Source Transconductance vs Drain‑to‑Source Voltage
 VDS = 5 V
Figure 6-7 Gate Current vs Gate-to-Source Voltage

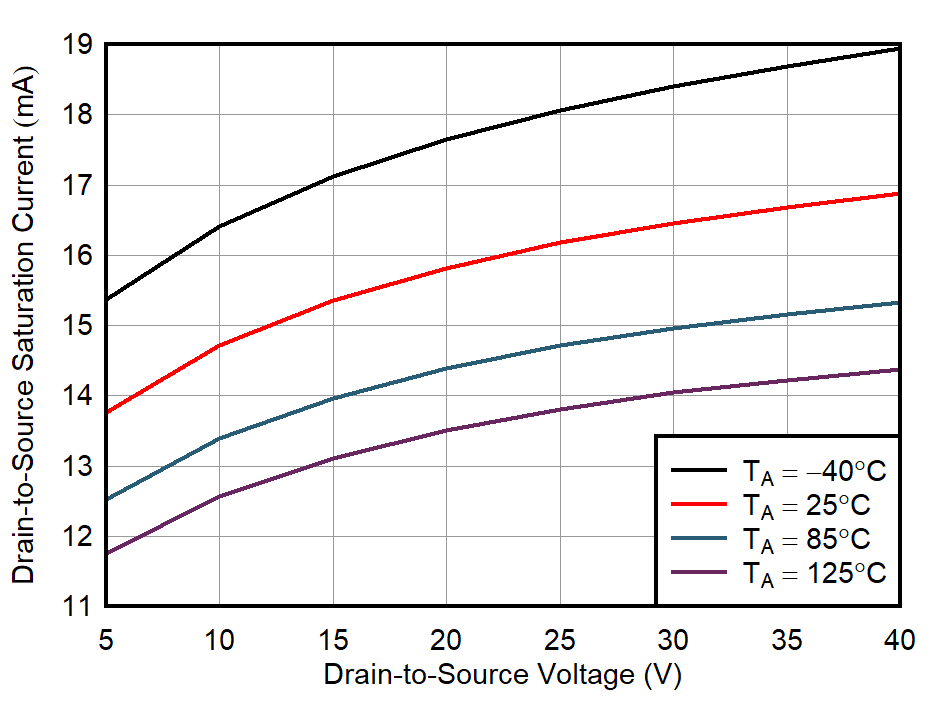

Figure 6-9 IDSS vs Drain-to-Source Voltage
VGS(Ch.1) – VGS(Ch.2)  VDS = 5 V 5 Units
Figure 6-11 VGS Mismatch vs Drain-to-Source Current
VGS(Ch.1) – VGS(Ch.2)
Figure 6-13 VGS Mismatch vs VDS
f = 1 kHz
Figure 6-15 Noise Density Contributors vs Input Gate Resistance

Figure 6-17 Input, Output, and Reverse Transfer Capacitance vs Drain-to-Source Voltage

Figure 6-2 Drain-to-Source Current vs Drain-to-Source Voltage

Figure 6-4 Common Source Transconductance vs Drain‑to‑Source Current

Figure 6-6 Gate Current vs Drain-to-Source Voltage
VDS = 5 V
Figure 6-8 Gate-to-Source Voltage vs Temperature
 VGS(Ch.1) – VGS(Ch.2)  IDS = 2 mA
Figure 6-10 VGS Mismatch Histogram
VGS(Ch.1) – VGS(Ch.2)   IDS = 2 mA 5 Units
Figure 6-12 VGS Mismatch vs Temperature

Figure 6-14 Input-Referred Noise Density vs Frequency
f = 1 kHz
Figure 6-16 Input-Referred Noise Spectral Density vs Drain‑to‑Source Current
