PCB Layout

Figure 7-1 through Figure 7-4 show the EVM PCB layout.

GUID-20230221-SS0I-QPJ4-FRBH-3TXGVS993RTD-low.gifFigure 7-1 ADS8354EVM PCB Layer 1: Top Layer
GUID-20230221-SS0I-CTZL-BPRN-GJHQWWSMKW5L-low.gifFigure 7-3 ADS8354EVM PCB Layer 3: Power Plane
GUID-20230221-SS0I-4WZ1-K6HB-WK8LQVJWQ8R0-low.gifFigure 7-2 ADS8354EVM PCB Layer 2: GND Plane

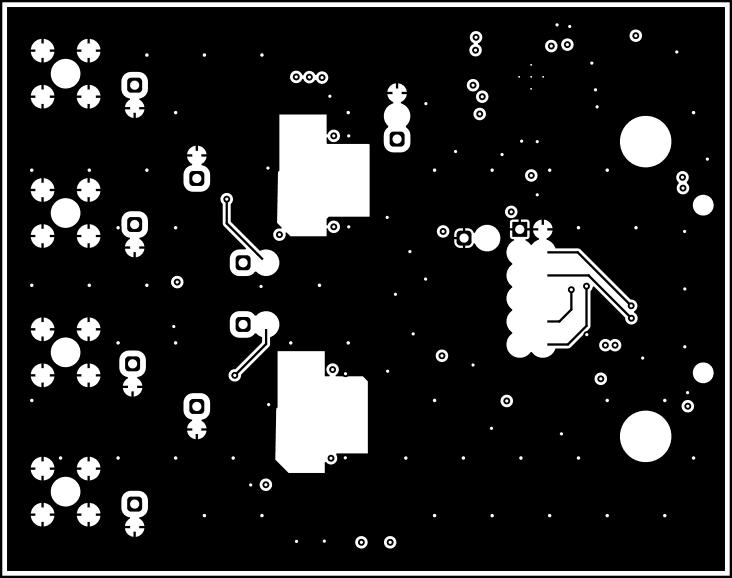

GUID-20230221-SS0I-M2KD-VKGL-P9HJD52Q8LNV-low.gifFigure 7-4 ADS8354EVM PCB Layer 4: Bottom Layer
