7.3.5.3 Decimation Filters

Table 7-5 provides an overview of the passband bandwidths and output data rates of the different decimation settings with respect to the ADC sampling rate FS.

Table 7-5 Decimation Filter Summary and Maximum Available Output Bandwidth
REAL/COMPLEX DECIMATIONDECIMATION SETTING NOUTPUT RATEOUTPUT BANDWIDTHOUTPUT RATE
(FS = 65 MSPS)		OUTPUT BANDWIDTH
(FS = 65 MSPS)
Complex2FS / 2 complex0.8 × FS / 232.5 MSPS complex26 MHz
4FS / 4 complex0.8 × FS / 416.25 MSPS complex13 MHz
8FS / 8 complex0.8 × FS / 88.125 MSPS complex6.5 MHz
16FS / 16 complex0.8 × FS / 164.0625 MSPS complex3.25 MHz
32FS / 32 complex0.8 × FS / 322.03125 MSPS complex1.625 MHz
Real2FS / 20.4 × FS / 232.5 MSPS13 MHz
4FS / 40.4 × FS / 416.25 MSPS6.5 MHz
8FS / 80.4 × FS / 88.125 MSPS3.25 MHz
16FS / 160.4 × FS / 164.0625 MSPS1.625 MHz
32FS / 320.4 × FS / 322.03125 MSPS0.8125 MHz

The decimation filter responses are normalized to the ADC sampling clock frequency FS and illustrated in Figure 7-21 to Figure 7-30. Each figure contains the filter passband, transition band(s) and stopband(s).

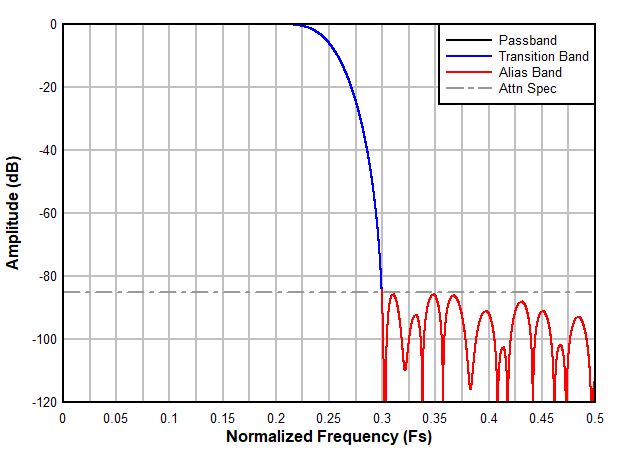

ADC3664-SP Decimation by 2 Filter Frequency ResponseFigure 7-21 Decimation by 2 Filter Frequency Response

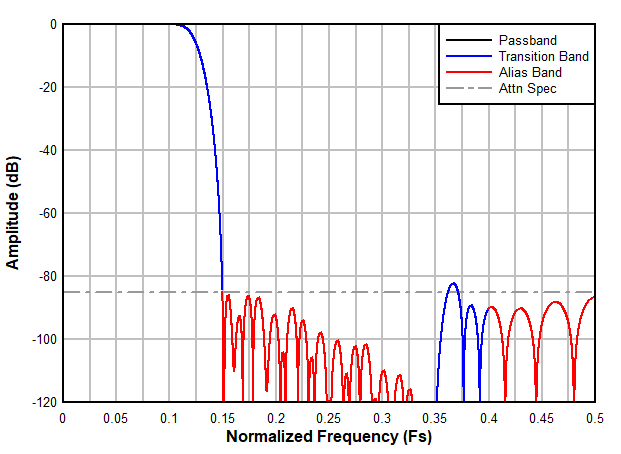

ADC3664-SP Decimation by 4 Filter Frequency ResponseFigure 7-23 Decimation by 4 Filter Frequency Response
ADC3664-SP Decimation by 8 Filter Frequency ResponseFigure 7-25 Decimation by 8 Filter Frequency Response

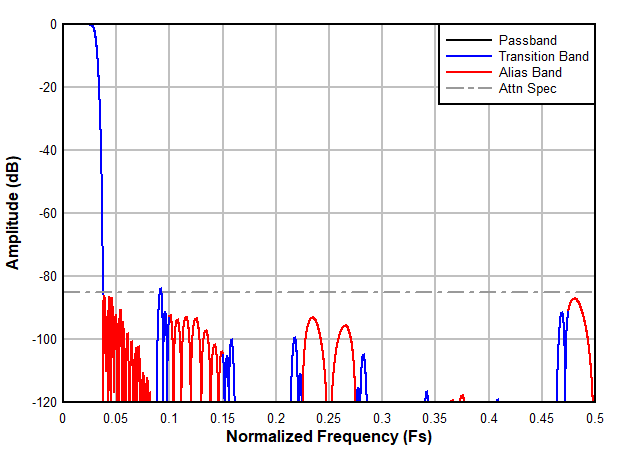

ADC3664-SP Decimation by 16 Filter Frequency ResponseFigure 7-27 Decimation by 16 Filter Frequency Response

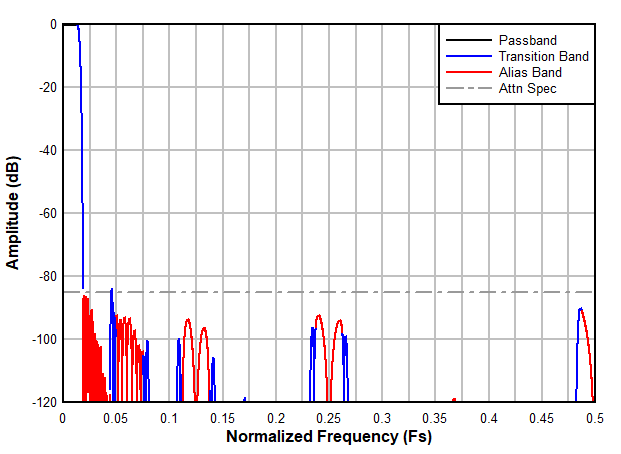

ADC3664-SP Decimation by 32 Filter Frequency ResponseFigure 7-29 Decimation by 32 Filter Frequency Response
ADC3664-SP Decimation by 2 Filter Passband Ripple ResponseFigure 7-22 Decimation by 2 Filter Passband Ripple Response
ADC3664-SP Decimation by 4 Filter Passband Ripple ResponseFigure 7-24 Decimation by 4 Filter Passband Ripple Response
ADC3664-SP Decimation by 8 Filter Passband Ripple ResponseFigure 7-26 Decimation by 8 Filter Passband Ripple Response
ADC3664-SP Decimation by 16 Filter Passband Ripple ResponseFigure 7-28 Decimation by 16 Filter Passband Ripple Response
ADC3664-SP Decimation by 32 Filter Passband Ripple ResponseFigure 7-30 Decimation by 32 Filter Passband Ripple Response
