6.12.3.2.4 SPI Slave Mode Timing and Switching Parameters (SPICLK = input, SPISIMO = input, and SPISOMI = output)
Table 6-17 SPI Slave Mode Timing Parameters (SPICLK = input, SPISIMO = input, and SPISOMI = output)(1)(2) see Figure 6-9 and Figure 6-10
NO.PARAMETERMINTYPMAXUNIT
1tc(SPC)SCycle time, SPICLK (2)25ns
2tw(SPCH)SPulse duration, SPICLK high (clock polarity = 0)10ns
tw(SPCL)SPulse duration, SPICLK low (clock polarity = 1)10
3tw(SPCL)SPulse duration, SPICLK low (clock polarity = 0)10ns
tw(SPCH)SPulse duration, SPICLK high (clock polarity = 1)10
4td(SPCH-SOMI)SDelay time, SPISOMI valid after SPICLK high (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)(3)11ns
td(SPCL-SOMI)SDelay time, SPISOMI valid after SPICLK low (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)(3)11
5th(SPCH-SOMI)SHold time, SPISOMI data valid after SPICLK high (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)(3)2ns
th(SPCL-SOMI)SHold time, SPISOMI data valid after SPICLK low (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)(3)2
Table 6-18 SPI Slave Mode Switching Characteristics (SPICLK = input, SPISIMO = input, and SPISOMI = output)(1)(2) see Figure 6-9 and Figure 6-10
NO. PARAMETER MIN TYP MAX UNIT
6 tsu(SIMO-SPCL)S Setup time, SPISIMO before SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)(4) 4.5 ns
tsu(SIMO-SPCH)S Setup time, SPISIMO before SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)(4) 4.5
7 th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)(4) 1 ns
th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)(4) 1
(1) The MASTER bit (SPIGCRx.0) is cleared ( where x = 0 or 1 ).
(2) If the SPI is in slave mode, the following must be true: tc(SPC)S ≥ (PS + 1) tc(MSS_VCLK), where PS = prescale value set in SPIFMTx.[15:8].
(3) When the SPI is in Slave mode, the following must be true: For PS values from 1 to 255: tc(SPC)S ≥ (PS +1)tc(MSS_VCLK) ≥ 25 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.For PS values of 0: tc(SPC)S = 2tc(MSS_VCLK) ≥ 25 ns.
(4) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).
AM2732 AM2732-Q1 SPI Slave Mode External Timing (CLOCK PHASE = 0)Figure 6-9 SPI Slave Mode External Timing (CLOCK PHASE = 0)

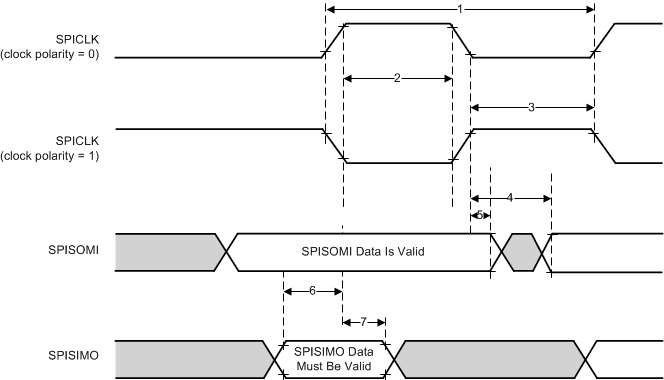

AM2732 AM2732-Q1 SPI Slave Mode External Timing (CLOCK PHASE = 1)Figure 6-10 SPI Slave Mode External Timing (CLOCK PHASE = 1)
