6.12.3.3.3 RGMII Transmit Data and Control Switching Characteristics
NO.(1)PARAMETERDESCRIPTIONMODEMINMAXUNIT
5 tosu(TXD-TXC) Output Setup time, transmit selected signals valid to MSS_RGMII_TCLK high/lowRGMII, Internal Delay Enabled, 10/100 Mbps1.2ns
6 toh(TXC-TXD) Output Hold time, transmit selected signals valid after MSS_RGMII_TCLK high/lowRGMII, Internal Delay Enabled, 10/100 Mbps1.2ns
(1) For RGMII, transmit selected signals include: MSS_RGMII_TXD[3:0] and MSS_RGMII_TCTL.

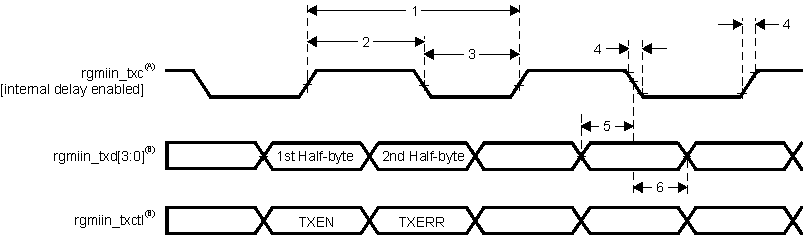

AM2732 AM2732-Q1 RGMII Transmit Interface Switching Characteristics
A. TXC is delayed internally before being driven to the rgmiin_txc pin. This internal delay is always enabled.
B. Data and control information is transmitted using both edges of the clocks. rgmiin_txd[3:0] carries data bits 3-0 on the rising edge of rgmiin_txc and data bits 7-4 on the falling edge of rgmiin_txc. Similarly, rgmiin_txctl carries TXEN on rising edge of rgmiin_txc and TXERR of falling edge of rgmiin_txc.
Figure 6-11 RGMII Transmit Interface Switching Characteristics
