6.10.5.16.1.2 PRU_ICSSG PRU Parallel Capture Mode Timing
Table 6-109 PRU_ICSSG PRU Timing Requirements – Parallel Capture Mode see Figure 6-90 and Figure 6-91
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PRPC1 tc(CLOCK) Cycle time, CLOCKIN 20 ns
PRPC2 tw(CLOCKL) Pulse duration, CLOCKIN low 0.45P(1) ns
PRPC3 tw(CLOCKH) Pulse duration, CLOCKIN high 0.45P(1) ns
PRPC4 tsu(DATAIN-CLOCK) Setup time, DATAIN valid before CLOCKIN active edge 4 ns
PRPC5 th(CLOCK-DATAIN) Hold time, DATAIN valid after CLOCKIN active edge 0 ns
(1) P = CLOCKIN cycle time in ns

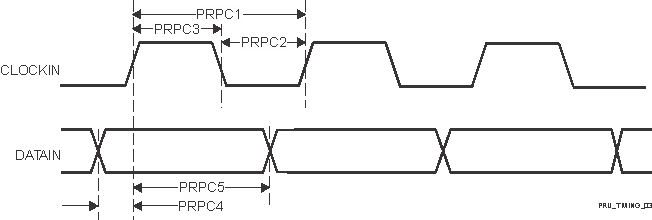

GUID-70F0E871-5BED-491B-B7A4-3A3FEDF320A4-low.gif Figure 6-90 PRU_ICSSG PRU Parallel Capture Timing Requirements – Rising Edge Mode
GUID-FA485F91-A268-4FDD-BE55-D2D8B6A6D8FB-low.gif Figure 6-91 PRU_ICSSG PRU Parallel Capture Timing Requirements – Falling Edge Mode
