6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage AVDD (2) –0.5 4 V
DVDD (3)
Voltage between AGND and DGND –0.5 0.5 V
Voltage between AVDD and DVDD –4 4 V
Supply voltage DA [13:0] and DB [13:0] (3) –0.5 DVDD + 0.5 V
MODE, SLEEP, CLKA, CLKB, WRTA, WRTB (3) –0.5 DVDD + 0.5 V
IOUTA1, IOUTA2, IOUTB1, IOUTB2 (2) –1 AVDD + 0.5 V
EXTIO, BIASJ_A, BIASJ_B, GSET (2) –0.5 AVDD + 0.5 V
Peak input current (any input) 20 mA
Peak total input current (all inputs) –30 mA
Operating free-air temperature range –40 85 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Measured with respect to AGND.
(3) Measured with respect to DGND.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supplies
AVDD 3.0 3.3 3.6 V
DVDD 3.0 3.3 3.6 V
I(AVDD) Analog supply current 75 90 mA
I(DVDD) Digital supply current 25 38 mA
Analog Output
IO(FS) Full-scale output current 2 20 mA
Output voltage compliance range –1 1.25 V
Clock Interface (CLK, CLKC)
CLKINPUT Frequency 275 MHz

6.4 Thermal Information

THERMAL METRIC(1) DAC5672A UNIT
PFB (TQFP)
48 PINS
RθJA Junction-to-ambient thermal resistance 64.4 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 16.7 °C/W
RθJB Junction-to-board thermal resistance 27.7 °C/W
ψJT Junction-to-top characterization parameter 0.4 °C/W
ψJB Junction-to-board characterization parameter 27.5 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

over TA, AVDD = DVDD = 3.3 V, IOUTFS = 20 mA, independent gain set mode, (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DC SPECIFICATIONS
Resolution 14 Bits
DC ACCURACY (1)
INL Integral nonlinearity 1 LSB = IOUTFS / 214, TMIN to TMAX –4 ±1.1 4 LSB
DNL Differential nonlinearity –3 ±0.75 3 LSB
ANALOG OUTPUT
Offset error Midscale value ±0.03 %FSR
Offset mismatch Midscale value ±0.03 %FSR
Gain error With external reference ±0.25 %FSR
With internal reference ±0.25 %FSR
Minimum full-scale output current (2) 2 mA
Maximum full-scale output current (2) 20 mA
Gain mismatch With external reference –2 0.2 2 %FSR
With internal reference –2 0.2 2 %FSR
Output voltage compliance range (3) –1 1.25 V
RO Output resistance 300 kΩ
CO Output capacitance 5 pF
REFERENCE OUTPUT
Reference voltage 1.14 1.2 1.26 V
Reference output current (4) 100 nA
REFERENCE INPUT
VEXTIO Input voltage 0.1 1.25 V
RI Input resistance 1 MΩ
Small signal bandwidth 300 kHz
CI Input capacitance 100 pF
TEMPERATURE COEFFICIENTS
Offset drift 2 10 ppm of FSR/°C
Gain drift With external reference (DACA) 10 43 ppm of FSR/°C
With external reference (DACB) 20 80
With internal reference 40 160 ppm of FSR/°C
Reference voltage drift 20 ppm /°C
(1) Measured differently through 50 Ω to AGND.
(2) Nominal full-scale current (IOUTFS) equals 32 times the IBIAS current
(3) The lower limit of the output compliance is determined by the CMOS process. Exceeding this limit may result in transistor breakdown, resulting in reduced reliability of the DAC5672A device. The upper limit of the output compliance is determined by the load resistors and ful-scale output current. Exceeding the upper limit adversely affects distortion performance and integral nonlinearity.
(4) Use an external buffer amplifier with high-impedance input to drive any external load.

6.6 Electrical Characteristics

over TA, AVDD = DVDD = 3.3 V, IOUTFS = 20 mA, fDATA = 200 MSPS, fOUT = 1 MHz, independent gain set mode, (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
POWER SUPPLY
AVDD Analog supply voltage 3 3.3 3.6 V
DVDD Digital supply voltage 3 3.3 3.6 V
IAVDD Analog supply current Including output current through load resistor 75 90 mA
Sleep mode with clock 2.5 6 mA
Sleep mode without clock 2.5 mA
IDVDD Digital supply current fDATA = 200 MSPS, fOUT = 1 MHz 25 38 mA
Sleep mode with clock 13.4 18 mA
Sleep mode without clock 0.6 mA
Power dissipation fDATA = 200 MSPS, fOUT = 1 MHz 330 390 mW
Sleep mode with clock 53
Sleep mode without clock 9.2
fDATA = 275 MSPS, fOUT = 20 MHz 350
APSRR Analog power supply rejection ratio –0.2 –0.01 0.2 %FSR/V
DPSRR Digital power supply rejection ratio –0.2 0 0.2 %FSR/V
TA Operating free-air temperature –40 85 °C

6.7 Electrical Characteristics: AC Characteristics

AC specifications over TA , AVDD = DVDD = 3.3 V, IOUTFS = 20 mA, differential 1:1 impedance ratio transformer coupled output, 50-Ω doubly terminated load (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG OUTPUT
fclk Maximum output update rate (1) 275 MSPS
ts Output settling time to 0.1% (DAC) Midscale transition 20 ns
tr Output rise time 10% to 90% (OUT) 1.4 ns
tf Output fall time 10% to 90% (OUT) 1.5 ns
Output noise IOUTFS = 20 mA 55 pA/√Hz
IOUTFS = 2 mA 30 pA/√Hz
AC LINEARITY
SFDR Spurious-free dynamic range 1st Nyquist zone:
TA = 25°C
fDATA = 50 MSPS
fOUT = 1 MHz
IOUTFS = 0 dB		 83 dBc
1st Nyquist zone:
TA = 25°C fDATA = 50 MSPS
fOUT = 1 MHz
IOUTFS = –6 dB		 80
1st Nyquist zone:
TA = 25°C
fDATA = 50 MSPS
fOUT = 1 MHz
IOUTFS = –12 dB		 79
1st Nyquist zone:
TA = 25°C
fDATA = 100 MSPS
fOUT = 5 MHz		 84
1st Nyquist zone, TA = 25°C, fDATA = 100 MSPS, fOUT = 20 MHz 79
1st Nyquist zone, TMIN to TMAX, fDATA = 200 MSPS, fOUT = 20 MHz 68 75
1st Nyquist zone, TA = 25°C, fDATA = 200 MSPS, fOUT = 41 MHz 72
1st Nyquist zone, TA = 25°C, fDATA = 275 MSPS, fOUT = 20 MHz 74
SNR Signal-to-noise ratio 1st Nyquist zone, TA = 25°C, fDATA = 100 MSPS, fOUT = 5 MHz 77 dB
1st Nyquist zone, TA = 25°C, fDATA = 160 MSPS, fOUT = 20 MHz 70 dB
ACLR Adjacent channel leakage ratio W-CDMA signal with 3.84-MHz bandwidth, fDATA = 61.44 MSPS, IF = 15.360 MHz 75 dB
W-CDMA signal with 3.84-MHz bandwidth, fDATA = 122.88 MSPS, IF = 30.72 MHz 73 dB
W-CDMA signal with 3.84-MHz bandwidth, fDATA = 61.44 MSPS, baseband 78 dB
W-CDMA signal with 3.84-MHz bandwidth, fDATA = 122.88 MSPS, baseband 78 dB
IMD3 Third-order two-tone intermodulation Each tone at –6 dBFS, TA = 25°C, fDATA = 200 MSPS, fOUT = 45.4 MHz and 46.4 MHz 65 dBc
Each tone at –6 dBFS, TA = 25°C, fDATA = 100 MSPS, fOUT = 15.1 MHz and 16.1 MHz 79 dBc
IMD Four-tone intermodulation Each tone at –12 dBFS, TA = 25°C, fDATA = 100 MSPS, fOUT = 15.6, 15.8, 16.2, and 16.4 MHz 79 dBc
Each tone at –12 dBFS, TA = 25°C, fDATA = 165 MSPS, fOUT = 68.8, 69.6, 71.2, and 72 MHz 61 dBc
Each tone at –12 dBFS, TA = 25°C, fDATA = 165 MSPS, fOUT = 19, 19.1, 19.3, and 19.4 MHz 73 dBc
Channel isolation TA = 25°C, fDATA = 165 MSPS, fOUT (CH1) = 20 MHz, fOUT (CH2) = 21 MHz 95 dBc
(1)

6.8 Electrical Characteristics: Digital Characteristics

Digital specifications over TA, AVDD = DVDD = 3.3 V, IOUTFS = 20 mA, (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DIGITAL INPUT
VIH High-level input voltage 2 3.3 V
VIL Low-level input voltage 0 0.8 V
IIH High-level input current ±50 0.8 µA
IIL Low-level input current ±10 µA
IIH(GSET) High-level input current, GSET pin 7 µA
IIL(GSET) Low-level input current, GSET pin –80 µA
IIH(MODE) High-level input current, MODE pin –30 µA
IIL(MODE) Low-level input current, MODE pin –80 µA
CI Input capacitance 5 pF

6.9 Switching Characteristics

digital specifications over TA, AVDD = DVDD = 3.3 V, IOUTFS = 20 mA, (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tsu Input setup time Dual bus mode 1 ns
Single-bus interleaved mode 0.5
th Input hold time Dual bus mode 1 ns
Single-bus interleaved mode 0.5
tLPH Input clock pulse high time Dual bus mode 1 ns
Single-bus interleaved mode
tLAT Clock latency (WRT A/B to outputs) Dual bus mode 4 4 clk
Single-bus interleaved mode 4 4
tPD Propagation delay time Dual bus mode 1.5 ns
Single-bus interleaved mode 1.5

6.10 Typical Characteristics

DAC5672A SLAS440_G001.gif Figure 1. Integral Nonlinearity vs Input Code
DAC5672A SLAS440_G003.gif Figure 3. Spurious-Free Dynamic Range vs Output Frequency

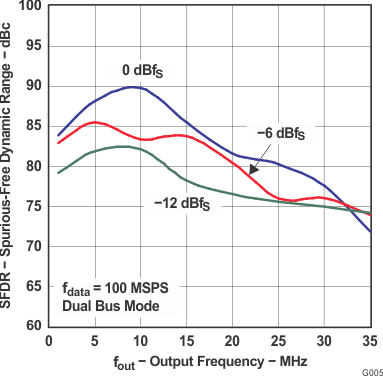

DAC5672A SLAS440_G005.gif Figure 5. Spurious-Free Dynamic Range vs Output Frequency
DAC5672A SLAS440_G007.gif Figure 7. Single-Tone Spectrum
DAC5672A SLAS440_G009.gif Figure 9. Two-Tone IMD3 vs Output Frequency
DAC5672A SLAS440_G011.gif Figure 11. Two-Tone Spectrum
DAC5672A SLAS440_G013.gif Figure 13. Power vs Frequency
DAC5672A slas440_g015.gif Figure 15. Power vs Frequency
DAC5672A SLAS440_G002.gif Figure 2. Differential Nonlinearity vs Input Code
DAC5672A SLAS440_G004.gif Figure 4. Spurious-Free Dynamic Range vs Output Frequency
DAC5672A SLAS440_G006.gif Figure 6. Spurious-Free Dynamic Range vs Output Frequency
DAC5672A SLAS440_G008.gif Figure 8. Single-Toned Spectrum
DAC5672A SLAS440_G010.gif Figure 10. Two-Tone IMD3 vs Output Frequency

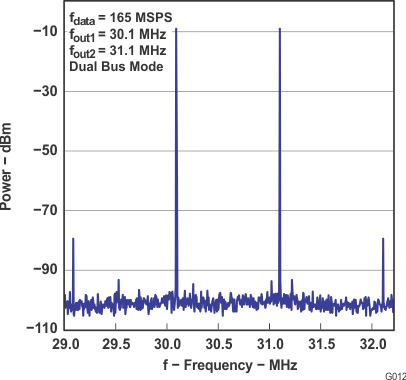

DAC5672A SLAS440_G012.gif Figure 12. Two-Tone Spectrum

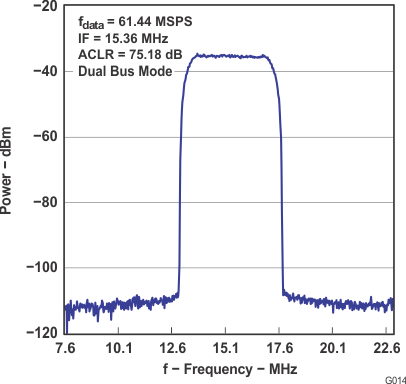

DAC5672A SLAS440_G014.gif Figure 14. Power vs Frequency
DAC5672A slas440_g016.gif Figure 16. Power vs Frequency
