7.5.1.2 SPI Format

The SDI input-data word is 16 bits long and consists of the following format:

  • 1 read or write bit, W (bit 15)
  • 4 address bits, A (bits 14 through 11)
  • 3 don't care bits, X (10 through 8)
  • 8 data bits, D (7:0)

The SDO output-data word is 16 bits long and the first 8 bits are don’t care bits. The data word is the content of the register being accessed.

For a write command (W0 = 0), the response word on the SDO pin is the data currently in the register being written to.

For a read command (W0 = 1), the response word is the data currently in the register being read.

Table 7-12 SDI Input Data Word Format
R/WADDRESSDON'T CAREDATA
B15B14B13B12B11B10B9B8B7B6B5B4B3B2B1B0
W0A3A2A1A0XXXD7D6D5D4D3D2D1D0
Table 7-13 SDO Output Data Word Format
DON'T CAREDATA
B15B14B13B12B11B10B9B8B7B6B5B4B3B2B1B0
XXXXXXXXD7D6D5D4D3D2D1D0

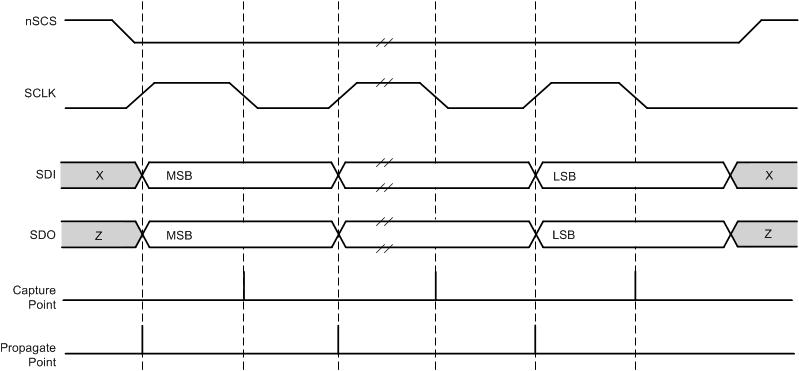

GUID-E2D93B34-EA20-4F32-8972-05199EE875AA-low.gifFigure 7-18 SPI Transaction

The SCLK pin should be low at power-up of the device for reliable SPI transaction. If the SCLK pin cannot be guaranteed to be low at power-up, TI recommends performing a dummy SPI-read transaction (of any register) after power-up to ensure reliable subsequent transactions. Data read from this dummy read transaction should be discarded.
