7.3.5 Logic and Quad-Level Pin Diagrams

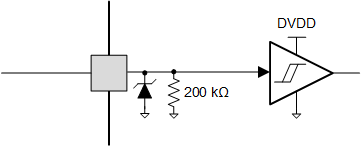

Figure 7-11 gives the input structure for logic-level pins IN1, IN2, IN3, IN4 and nSLEEP:

GUID-1ECA61DE-3EFF-46A3-9F8A-F79D710C97B8-low.gifFigure 7-11 Logic-level Input Pin Diagram

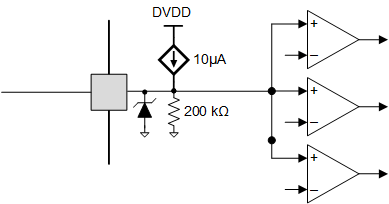

Quad-level logic pin TOFF has the following structure as shown in Figure 7-12.

GUID-3E3ADCEF-55E8-4402-BB6B-04BB0E5EEC48-low.gifFigure 7-12 Quad-Level Input Pin Diagram
