6.6 Typical Characteristics

at T_A = 25 °C, V_S = 5 V, V_IN+ = 12 V, and V_REF = V_S / 2 (unless otherwise noted)

All gains

Figure 6-1 Input Offset Voltage Production Distribution

All gains

Figure 6-3 Common-Mode Rejection Production Distribution

Figure 6-5 Power-Supply Rejection Ratio vs Temperature

Figure 6-7 Gain Error Production Distribution (INA253A2-Q1)

Figure 6-9 System Gain Error vs Temperature

V_CM = 0 V, V_DIFF = 10-mV_PP sine

Figure 6-11 Amplifier Gain Error vs Frequency

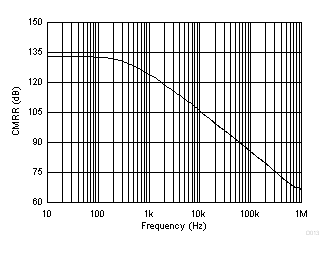

Figure 6-13 Common-Mode Rejection Ratio vs Frequency


V_S = 5 V

Figure 6-15 Input Bias Current vs Common-Mode Voltage

Figure 6-17 Input Bias Current vs Temperature

Figure 6-19 Quiescent Current vs Common-mode Voltage

Figure 6-21 INA253A2-Q1 Input-Referred Voltage Noise vs Frequency

Figure 6-23 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)

V_REF1 = V_REF2 = 0 V

Figure 6-25 Common-Mode Transient Response

Rising Edge

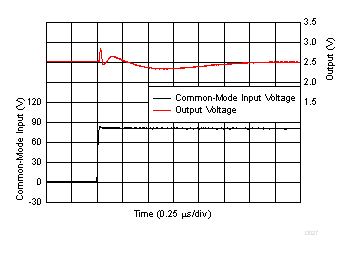

Figure 6-27 Common-Mode Voltage Transient Response

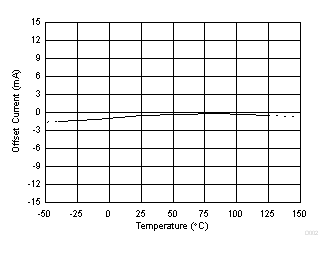

Figure 6-2 Input Offset Current vs Temperature

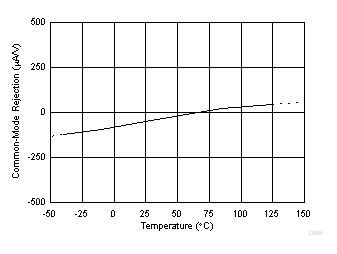

Figure 6-4 Common-Mode Rejection Ratio vs Temperature

Figure 6-6 Gain Error Production Distribution (INA253A1-Q1)

Figure 6-8 Gain Error Production Distribution (INA253A3-Q1)

Figure 6-10 Amplifier Gain Error vs Temperature

Figure 6-12 Power-Supply Rejection Ratio vs Frequency


V_S = 5 V

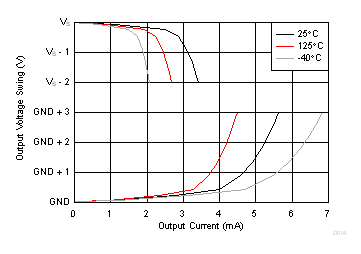

Figure 6-14 Output Voltage Swing vs Output Current


	V_S = 0 V

Figure 6-16 Input Bias Current vs Common-Mode Voltage

Figure 6-18 Quiescent Current vs Temperature

Figure 6-20 INA253A1-Q1 Input-Referred Voltage Noise vs Frequency

Figure 6-22 INA253A3-Q1 Input-Referred Voltage Noise vs Frequency


V_REF1 = V_REF2 = 0 V, 10-mV_PP input step

Figure 6-24 Amplifier Step Response

Figure 6-26 Start-Up Response

Falling Edge

Figure 6-28 Common-Mode Voltage Transient Response
