Application Curve

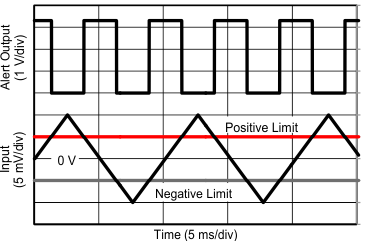

Figure 8-6 shows the INA303-Q1 device being used in a bidirectional configuration to detect both negative and positive overcurrent events.

GUID-D09FEC4D-5209-476A-940B-A8D4E8D0BA16-low.gifFigure 8-6 Bidirectional Application Curve
