7.16 Typical Characteristics

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Supply Current Vs Data Rate- No Load
DE = VCC1RE = GND1TA = 25°C
Figure 7-3 ISO141x Supply Current Vs Data Rate- No Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Supply Current Vs Data Rate- With 120Ω||50pf Load
DE = VCC1RE = GND1Driver Load = 120 Ω || 50pF
TA = 25°CLoad On R = 15 pF
Figure 7-5 ISO141x Supply Current Vs Data Rate- With 120Ω||50pf Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Supply Current Vs. Data Rate - 120Ω||50pF Load
DE = VCC1TA = 25°CRE = GND1
Driver Load = 120 Ω || 50pF50pF, Load On R = 15pf
Figure 7-7 ISO143x Supply Current Vs. Data Rate - 120Ω||50pF Load

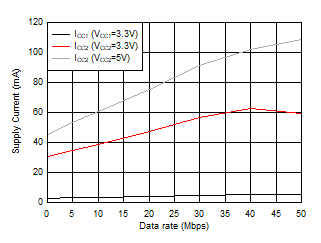

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Supply Current Vs Data Rate- No Load
DE = VCC1TA = 25°CRE = GND1
Figure 7-9 ISO145x Supply Current Vs Data Rate- No Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Supply Current Vs Data Rate- 54Ω||50pF Load
DE = VCC1TA = 25°CRE = GND1
Driver Load = 54 Ω || 50pF50pF, Load On R = 15pf
Figure 7-11 ISO145x Supply Current Vs Data Rate- 54Ω||50pF Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Driver Differential Output Voltage Vs Driver Output Current
DE = VCC1D = GND1VCC1 = 3.3 V
TA = 25°CVCC2 = 5 V
Figure 7-13 Driver Differential Output Voltage Vs Driver Output Current
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Driver Output Current Vs Supply Voltage (VCC2)
RL = 54 ΩDE = D = VCC1TA = 25°C
Figure 7-15 Driver Output Current Vs Supply Voltage (VCC2)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Driver Rise/Fall Time (ns) Vs Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-17 ISO143x Driver Rise/Fall Time (ns) Vs Temperature (C)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Driver Propagation Delay (ns) Vs Temperature (c)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-19 ISO141x Driver Propagation Delay (ns) Vs Temperature (c)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Driver Propagation Delay (ns) Vs Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-21 ISO145x Driver Propagation Delay (ns) Vs Temperature (C)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Receiver Buffer Low Level Output Voltage Vs Low Level Output Current
TA = 25°C
Figure 7-23 Receiver Buffer Low Level Output Voltage Vs Low Level Output Current
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Receiver Propagation Delay (ns) Vs. Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-25 ISO143x Receiver Propagation Delay (ns) Vs. Temperature (C)

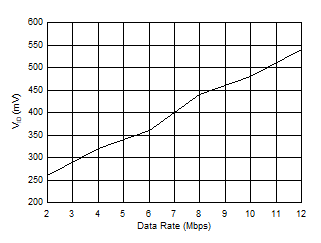

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Receiver VID vs Signaling Rate
For PWD ≤±5%
Figure 7-27 ISO143x Receiver VID vs Signaling Rate
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Driver Propagation Delay
VCC1 = 3.3 V VCC2 = 5 V TA = 25° C
DE = VCC1
Figure 7-29 ISO141x Driver Propagation Delay
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Driver Propagation Delay
VCC1 = 3.3 V VCC2 = 5 V TA = 25° C
DE = VCC1
Figure 7-31 ISO145x Driver Propagation Delay
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 VCC1 Power Up/Power Down - Glitch Free Behavior
Figure 7-33 VCC1 Power Up/Power Down - Glitch Free Behavior
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Supply Current Vs Data Rate- With 54Ω||50pf Load
DE = VCC1RE = GND1Driver Load = 54 Ω || 50pF
TA = 25°CLoad On R = 15 pF
Figure 7-4 ISO141x Supply Current Vs Data Rate- With 54Ω||50pf Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Supply Current Vs. Data Rate - No Load
DE = VCC1TA = 25°CRE = GND1
Figure 7-6 ISO143x Supply Current Vs. Data Rate - No Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Supply Current Vs Data Rate- 54Ω||50pF Load
DE = VCC1TA = 25°CRE = GND1
Driver Load = 54 Ω || 50pF50pF, Load On R = 15pf
Figure 7-8 ISO143x Supply Current Vs Data Rate- 54Ω||50pF Load

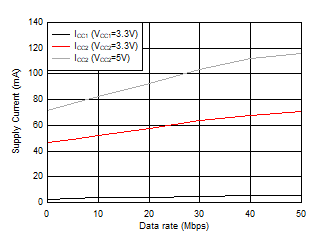

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Supply Current Vs Data Rate- 120Ω||50pF Load
DE = VCC1TA = 25°CRE = GND1
Driver Load = 120 Ω || 50pF50pF, Load On R = 15pf
Figure 7-10 ISO145x Supply Current Vs Data Rate- 120Ω||50pF Load
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Driver Output Voltage Vs Driver Output Current
DE = VCC1D = GND1VCC1 = 3.3 V
TA = 25°CVCC2 = 5 V
Figure 7-12 Driver Output Voltage Vs Driver Output Current
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Driver Differential Output Voltage Vs Temperature
Figure 7-14 Driver Differential Output Voltage Vs Temperature

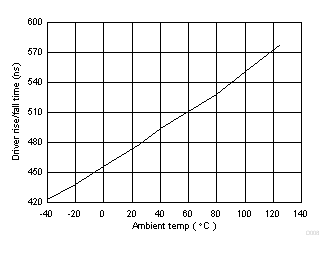

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Driver Rise/fall Time (ns) Vs Temperature (c)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-16 ISO141x Driver Rise/fall Time (ns) Vs Temperature (c)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Driver Rise/Fall Time (ns) Vs Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-18 ISO145x Driver Rise/Fall Time (ns) Vs Temperature (C)
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Driver Propagation Delay (ns) Vs Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-20 ISO143x Driver Propagation Delay (ns) Vs Temperature (C)

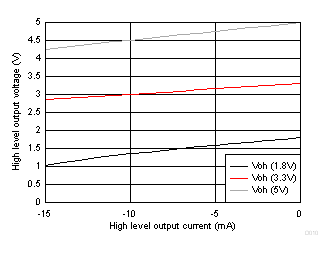

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 Receiver Buffer High Level Output Voltage Vs High Level Output Current
TA = 25° C
Figure 7-22 Receiver Buffer High Level Output Voltage Vs High Level Output Current
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Receiver Propagation Delay (ns) Vs Temperature (c)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-24 ISO141x Receiver Propagation Delay (ns) Vs Temperature (c)

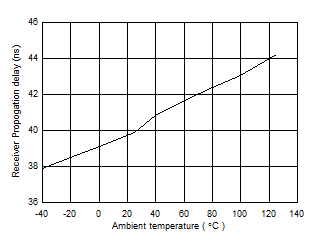

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Receiver Propagation Delay (ns) Vs. Temperature (C)
VCC1 = 3.3 VVCC2 = 5 V
Figure 7-26 ISO145x Receiver Propagation Delay (ns) Vs. Temperature (C)

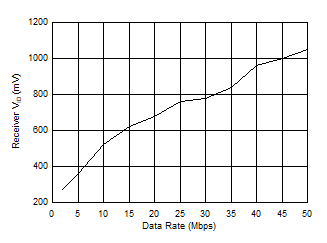

ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO145x Receiver VID vs Signaling Rate
For PWD ≤±5%
Figure 7-28 ISO145x Receiver VID vs Signaling Rate
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO143x Driver Propagation Delay
VCC1 = 3.3 V VCC2 = 5 V TA = 25° C
DE = VCC1
Figure 7-30 ISO143x Driver Propagation Delay
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 ISO141x Receiver Propagation Delay
VCC1 = 3.3 V VCC2 = 5 V TA = 25° C
DE = GND1 RE = GND1
Figure 7-32 ISO141x Receiver Propagation Delay
ISO1450 ISO1452 ISO1410 ISO1412 ISO1430 ISO1432 VCC2 Power Up/Power Down - Glitch Free Behavior
Figure 7-34 VCC2 Power Up/Power Down - Glitch Free Behavior
