5.22 Typical Characteristics

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M ISO7240C/M RMS Supply Current vs Signaling Rate
TA = 25°C Load = 15 pF All Channels
Figure 5-3 ISO7240C/M RMS Supply Current vs Signaling Rate
ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M ISO7242C/M RMS Supply Current vs Signaling Rate
TA = 25°C Load = 15 pF All Channels
Figure 5-5 ISO7242C/M RMS Supply Current vs Signaling Rate
ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M Input Voltage Threshold vs Free-Air Temperature
Air Flow at 7 cf/m Low_K Board
Figure 5-7 Input Voltage Threshold vs Free-Air Temperature

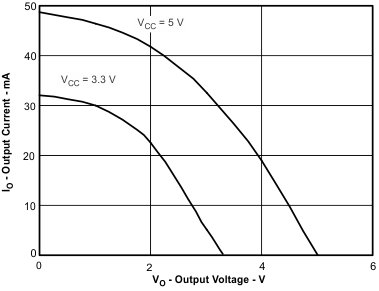

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M High-Level Output Current vs High-Level Output Voltage
TA = 25°C Load = 15 pF
Figure 5-9 High-Level Output Current vs High-Level Output Voltage

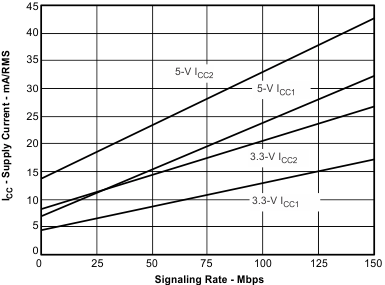

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M ISO7241C/M RMS Supply Current vs Signaling Rate
TA = 25°C Load = 15 pF All Channels
Figure 5-4 ISO7241C/M RMS Supply Current vs Signaling Rate

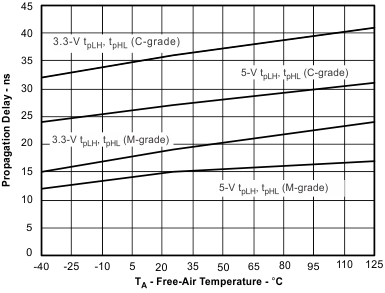

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M Propagation Delay vs Free-Air Temperature
TA = 25°C Load = 15 pF All Channels
Figure 5-6 Propagation Delay vs Free-Air Temperature

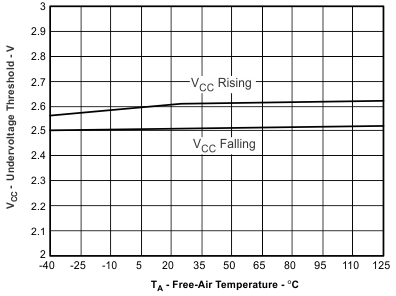

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M VCC Undervoltage Threshold vs Free-Air Temperature
Figure 5-8 VCC Undervoltage Threshold vs Free-Air Temperature

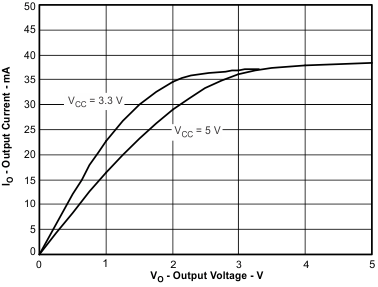

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M Low-Level Output Current vs Low-Level Output Voltage
TA = 25°C Load = 15 pF
Figure 5-10 Low-Level Output Current vs Low-Level Output Voltage
