8.2.1 Isolated Data Acquisition System for Process Control

The ISO724xx family of devices can be used with Texas Instruments' precision analog-to-digital converter and mixed signal microcontroller to create an advanced isolated data acquisition system as shown in Figure 8-1.

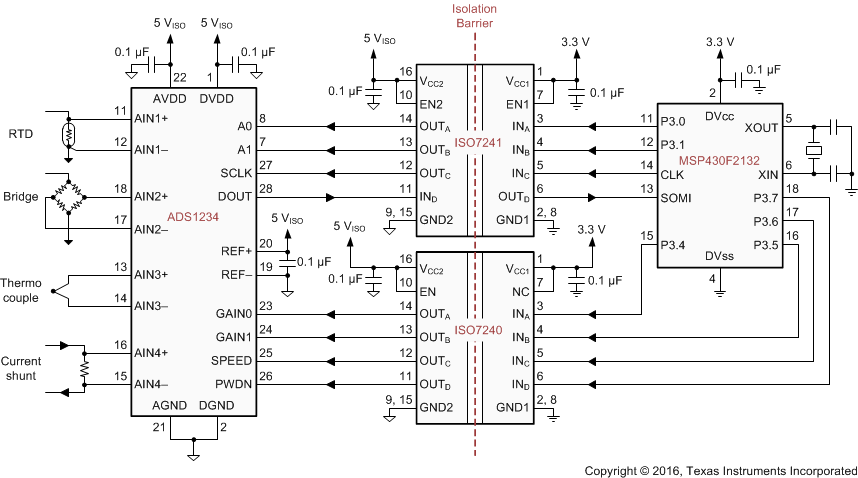

ISO7240CF ISO7240C ISO7240M ISO7241C ISO7241M ISO7242C ISO7242M Isolated Data Acquisition System for Process ControlFigure 8-1 Isolated Data Acquisition System for Process Control
