5.18 Insulation Characteristics Curves

ISO7831 ISO7831F Reinforced Isolation Capacitor Lifetime Projection for Devices in DW Package
TA up to 150°COperating lifetime = 135 years
Stress-voltage frequency = 60Hz
Isolation working voltage = 1500VRMS
Figure 5-1 Reinforced Isolation Capacitor Lifetime Projection for Devices in DW Package
ISO7831 ISO7831F Thermal Derating Curve for Safety Limiting Current for DW PackageFigure 5-3 Thermal Derating Curve for Safety Limiting Current for DW Package
ISO7831 ISO7831F Thermal Derating Curve for Safety Limiting Power for DW PackageFigure 5-5 Thermal Derating Curve for Safety Limiting Power for DW Package
ISO7831 ISO7831F Reinforced Isolation Capacitor Lifetime Projection for Devices in DWW Package
TA up to 150°COperating lifetime = 34 years
Stress-voltage frequency = 60Hz
Isolation working voltage = 2000VRMS
Figure 5-2 Reinforced Isolation Capacitor Lifetime Projection for Devices in DWW Package
ISO7831 ISO7831F Thermal Derating Curve for Safety Limiting Current for DWW PackageFigure 5-4 Thermal Derating Curve for Safety Limiting Current for DWW Package

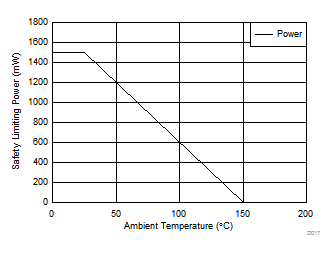

ISO7831 ISO7831F Thermal Derating Curve for Safety Limiting Power for DWW PackageFigure 5-6 Thermal Derating Curve for Safety Limiting Power for DWW Package
