7.10.4.1 LVDS Interface Timings

Table 7-7 LVDS Electrical Characteristics
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Duty Cycle Requirementsmax 1 pF lumped capacitive load on LVDS lanes48%52%
Output Differential Voltagepeak-to-peak single-ended with 100 Ω resistive load between differential pairs250450mV
Output Offset Voltage11251275mV
Trise and Tfall20%-80%, 900 Mbpsps
Jitter (pk-pk)900 Mbps80ps

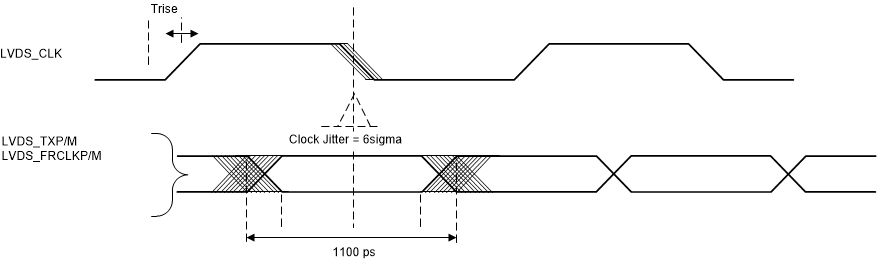

IWR1843 Timing ParametersFigure 7-12 Timing Parameters
