6.23 Typical Characteristics

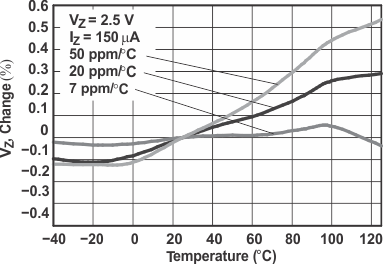

LM4040A LM4040B LM4040C LM4040D Temperature Drift for Different Average Temperature CoefficientsFigure 6-1 Temperature Drift for Different Average Temperature Coefficients
LM4040A LM4040B LM4040C LM4040D Output Impedance vs FrequencyFigure 6-3 Output Impedance vs Frequency
LM4040A LM4040B LM4040C LM4040D Noise Voltage vs FrequencyFigure 6-5 Noise Voltage vs Frequency
LM4040A LM4040B LM4040C LM4040D Output Impedance vs FrequencyFigure 6-2 Output Impedance vs Frequency
LM4040A LM4040B LM4040C LM4040D Cathode Current vs. Reverse VoltageFigure 6-4 Cathode Current vs. Reverse Voltage
