8.4.1 SMBus Mode

In SMBus mode, LMKDB11xx device SMBus registers can be written and read through SMBus pins. Pin SADR1 and SADR0 set the SMBus address.

SADR1 SADR0 8-Bit SMBus Address (R/W Bit = 0)
Low Low 0xD8
Low Float 0xDA
Low High 0xDE
Float Low 0xC2
Float Float 0xC4
Float High 0xC6
High Low 0xCA
High Float 0xCC
High High 0xCE

Table 8-7 Command Code Definition
BIT DESCRIPTION
7 0 = Block Read or Block Write operation
1 = Byte Read or Byte Write operation
(6:0) Register address for Byte operations, or starting register address for Block, operations

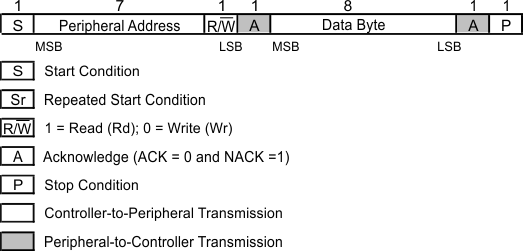

LMKDB1102 LMKDB1104 LMKDB1104FS LMKDB1108 LMKDB1108FS LMKDB1120 LMKDB1120FS Generic Programming Sequence Figure 8-7 Generic Programming Sequence
LMKDB1102 LMKDB1104 LMKDB1104FS LMKDB1108 LMKDB1108FS LMKDB1120 LMKDB1120FS Byte Write Protocol Figure 8-8 Byte Write Protocol
LMKDB1102 LMKDB1104 LMKDB1104FS LMKDB1108 LMKDB1108FS LMKDB1120 LMKDB1120FS Byte Read Protocol Figure 8-9 Byte Read Protocol
LMKDB1102 LMKDB1104 LMKDB1104FS LMKDB1108 LMKDB1108FS LMKDB1120 LMKDB1120FS Block Write Protocol Figure 8-10 Block Write Protocol
LMKDB1102 LMKDB1104 LMKDB1104FS LMKDB1108 LMKDB1108FS LMKDB1120 LMKDB1120FS Block Read Protocol Figure 8-11 Block Read Protocol
