7.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 300 kHz, L = 6.5 µH, COUT = 47 µF x 4, TA = 25°C

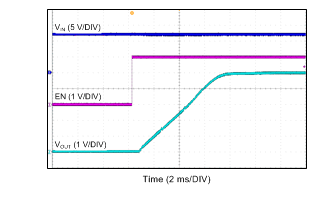

LMR14050 Start-up By EN
VIN = 12 VVOUT = 5 VIOUT = 2 A
Figure 7-2 Start-up By EN
LMR14050 Sleep Mode
VIN = 12 VVOUT = 5 VIOUT = 0 A
Figure 7-4 Sleep Mode

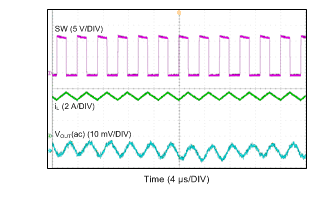

LMR14050 CCM Mode
VIN = 12 VVOUT = 5 VIOUT = 5 A
Figure 7-6 CCM Mode

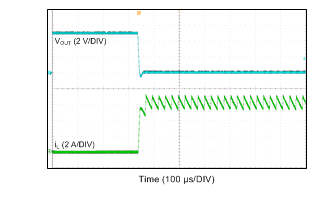

LMR14050 Output Short
VIN = 12 VVOUT = 5 V
Figure 7-8 Output Short

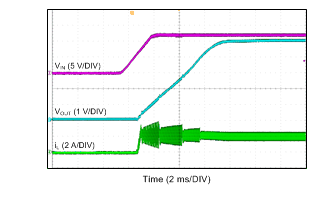

LMR14050 Start-up By VIN
VIN = 12 VVOUT = 5 VIOUT = 2 A
Figure 7-3 Start-up By VIN

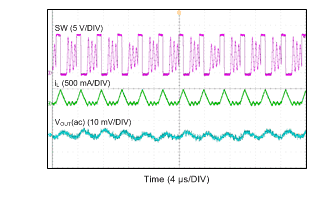

LMR14050 DCM Mode
VIN = 12 VVOUT = 5 VIOUT = 100 mA
Figure 7-5 DCM Mode

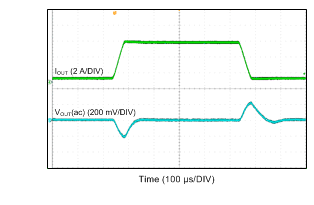

LMR14050 Load Transient
IOUT: 10% → 100% of 5 ASlew rate = 100 mA/μs
Figure 7-7 Load Transient
LMR14050 Output Short Recovery
VIN = 12 VVOUT = 5 V
Figure 7-9 Output Short Recovery
