7.2.3 Application Curves

The following curves were generated with 5V on VCC and VLogic, RPULLUP = 5.1kΩ, and 50pF scope probe.

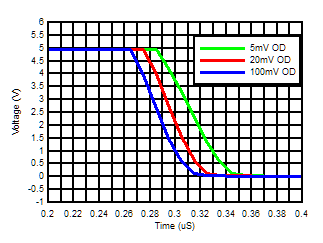

LMV331 LMV393 LMV339 Response Time for Various Overdrives (Negative Transition)Figure 7-2 Response Time for Various Overdrives (Negative Transition)
