6.7 Typical Characteristics

fOUT = 6 GHz, fPD=200 MHz,Jitter=36 fs 12k-20 MHz
Figure 6-1 Closed-Loop Noise



Figure 6-3 Noise Floor
GUID-20201106-CA0I-HDBF-H4X2-ZP6XBHJB6WBH-low.gifFigure 6-5 PLL Noise Metric Degradation vs. OSCin Slew Rate
Single-ended, OUTx_PWR=7, board losses de-embedded
Figure 6-7 Output Power vs. Temperature
GUID-3C1A13BF-D6E2-4FC6-AB0F-EB619E0783CC-low.gifFigure 6-9 Output Half Harmonic with Doubler Enabled
GUID-20201105-CA0I-WX1Z-LZLS-2QDVH2FXCV5M-low.gifFigure 6-11 PFDIN Pin Input Sensitivity
GUID-20201105-CA0I-XXDC-FGH3-TLKPV8CC0NJ8-low.gifFigure 6-13 RFIN Input Sensitivity
Approximation = 0.85*rb_TEMP_SENS - 415
Figure 6-15 Temperature Sensor Readback
This is showing the output is muted in well under 200 ns
Figure 6-17 Mute Pin Disable Output Time
Integration Range is 12k-20 MHz
Figure 6-2 Integrated Jitter

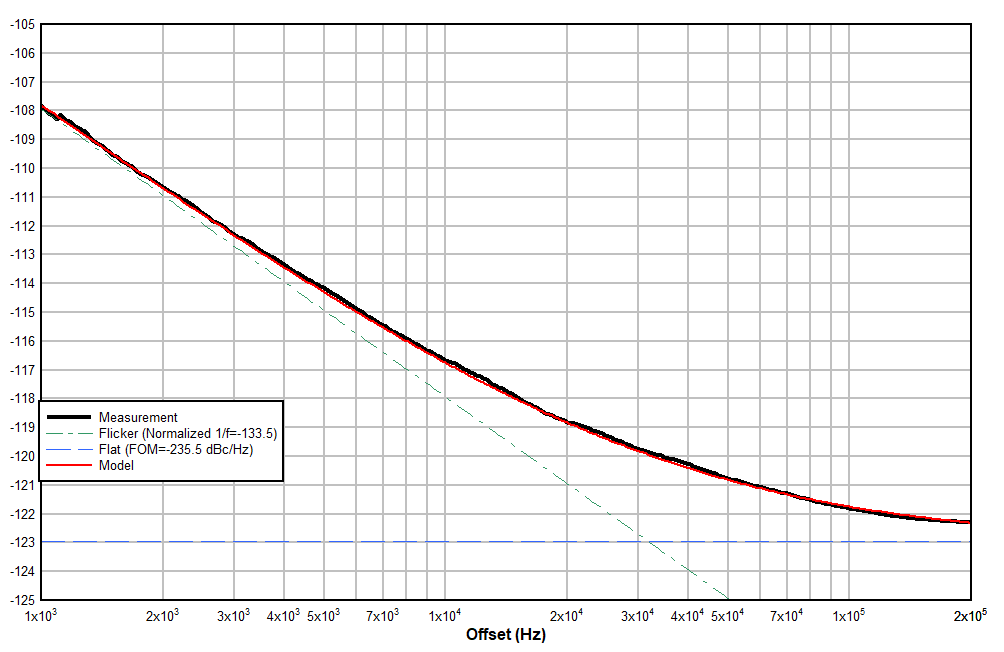

fOSC=100 MHz, fPD=200 MHz, fOUT=6 GHz, OSC_2X=1
Use of input doubler slightly degrades PLL noise metrics.
Figure 6-4 PLL Noise Metrics
GUID-20201106-CA0I-0NRM-ZKMW-VDP0PVBL4ZXS-low.gifFigure 6-6 IPLL Noise Metric Degradation vs. Charge Pump Gain
GUID-20201106-CA0I-GJTX-RCQC-BK3VV19GZK8W-low.gifFigure 6-8 Output Power vs. OUTx_PWR
GUID-20201110-CA0I-VDBK-5HXD-FFDQFXJPJ27P-low.gifFigure 6-10 RF Output Return Loss
GUID-20201105-CA0I-L36Z-MDT7-TW3TNN9H9WTD-low.gifFigure 6-12 OSCin Input Sensitivity
GUID-20201110-CA0I-BTGQ-JHTF-MCCV2M6X1THN-low.gifFigure 6-14 RFIN Return Loss
fVCO=8.4 GHz, SYSREF_DIV_PRE=8,Step Size=7.6 ps
Figure 6-16 SysRef Delays vs Temperature
Output is unmuted in under 200 μs. DC bias level can stabilize faster if smaller AC-coupling capacitor is used.
Figure 6-18 Mute Pin Enable Output Time
