5 Pin Configuration and Functions

LP8868U-Q1 LP8868V-Q1 LP8868W-Q1 LP8868X-Q1 LP8868Y-Q1 LP8868Z-Q1 14-Pin Buck VSON (Top View)Figure 5-1 14-Pin Buck VSON (Top View)
Table 5-1 VSON Pin Functions for buck topology
PIN TYPE(1) DESCRIPTION
No. NAME
1 PGND G Power ground pin.
2 AGND G Analog ground pin.
3 VIN P Input power pin.
4 VCC P Internal LDO output pin. Connect with a 10V, 1μF capacitor to GND.
5 ADIM/HD I Analog dimming or hybrid dimming pin. Pull high for PWM dimming only, pull low for hybrid dimming, input PWM signal for analog dimming.
6 PWM/EN I PWM dimming or EN pin. Pull high for always on, pull low for disabling the device, input PWM signal for PWM dimming.
7 FAULT O Open drain output. Pull low when fault is detected.
8 TEMP I/O Thermal foldback pin. Put different resistor values to GND to set different thermal foldback behavior curves.
9 FSET I/O Switching frequency set pin, with range from 100kHz to 2.2MHz. Put different resistor values to GND for different switching frequencies.
10 COMP I/O Error-amplifier output. Connect capacitors to GND. Different capacitor values determine different soft start times and bandwidths.
11 UVP I Undervoltage detection pin. Put different resistor dividers to set the LED open detection thresholds.
12 CSP I LED current sense positive pin.
13 CSN I LED current sense negative pin.
14 SW P Switching node pin. Internally connected to the low-side MOSFET. Connect with the power inductor and the Schottky diode.
Pad Thermal Pad G Power ground pin.

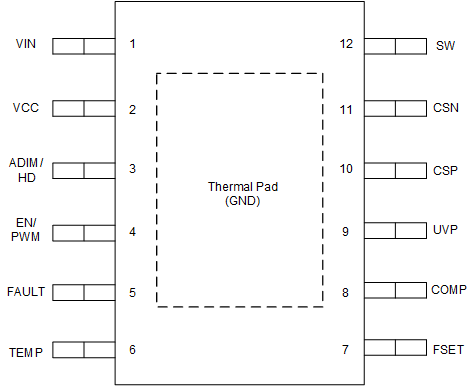

LP8868U-Q1 LP8868V-Q1 LP8868W-Q1 LP8868X-Q1 LP8868Y-Q1 LP8868Z-Q1 12-Pin Buck HVSSOP (Top View) Figure 5-2 12-Pin Buck HVSSOP (Top View)
Table 5-2 HVSSOP Pin Functions for buck topology
PIN TYPE(1) DESCRIPTION
No. NAME
1 VIN P Input power pin.
2 VCC P Internal LDO output pin. Connect with a 10V, 1μF capacitor to GND.
3 ADIM/HD I Analog dimming or hybrid dimming pin. Pull high for PWM dimming only, pull low for hybrid dimming, input PWM signal for analog dimming.
4 PWM/EN I PWM dimming or EN pin. Pull high for always on, pull low for disabling the device, input PWM signal for PWM dimming.
5 FAULT O Open drain output. Pull low when fault is detected.
6 TEMP I/O Thermal foldback pin. Put different resistor values to GND to set different thermal foldback behavior curves.
7 FSET I/O Switching frequency set pin, with range from 100kHz to 2.2MHz. Put different resistor values to GND for different switching frequencies.
8 COMP I/O Error-amplifier output. Connect capacitors to GND. Different capacitor values determine different soft start times and bandwidths.
9 UVP I Undervoltage detection pin. Put different resistor dividers to set the LED open detection thresholds.
10 CSP I LED current sense positive pin.
11 CSN I LED current sense negative pin.
12 SW P Switching node pin. Internally connected to the low-side MOSFET. Connect with the power inductor and the schottky diode.
Pad Thermal Pad G Power ground pin and analog ground pin

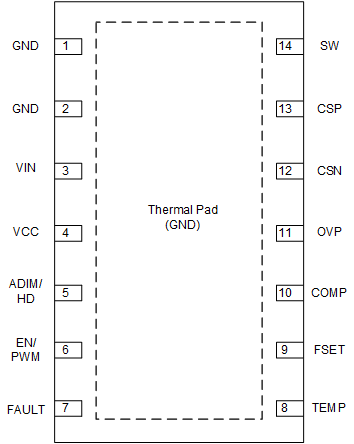

LP8868U-Q1 LP8868V-Q1 LP8868W-Q1 LP8868X-Q1 LP8868Y-Q1 LP8868Z-Q1 14-Pin Boost/Buck-Boost VSONTop ViewFigure 5-3 14-Pin Boost/Buck-Boost VSONTop View
Table 5-3 VSON Pin Functions for boost/buck-boost topology
PIN TYPE(1) DESCRIPTION
No. NAME
1 PGND G Power ground pin.
2 AGND G Analog ground pin.
3 VIN P Input power pin.
4 VCC P Internal LDO output pin. Connect with a 10V, 1μF capacitor to GND.
5 ADIM/HD I Analog dimming or hybrid dimming pin. Pull high for PWM dimming only, pull low for hybrid dimming, input PWM signal for analog dimming.
6 PWM/EN I PWM dimming or EN pin. Pull high for always on, pull low for disabling the device, input PWM signal for PWM dimming.
7 FAULT O Open drain output. Pull low when fault is detected.
8 TEMP I/O Thermal foldback pin. Put different resistor values to GND to set different thermal foldback behavior curves.
9 FSET I/O Switching frequency set pin, with range from 100kHz to 2.2MHz. Put different resistor values to GND for different switching frequencies.
10 COMP I/O Error-amplifier output. Connect capacitors to GND. Different capacitor values determine different soft start times and bandwidths.
11 OVP I Overvoltage detection pin. Put different resistor dividers to set the LED open detection thresholds.
12 CSN I LED current sense negative pin.
13 CSP I LED current sense positive pin.
14 SW P Switching node pin. Internally connected to the low-side MOSFET. Connect with the power inductor and the Schottky diode.
Pad Thermal Pad G Power ground pin.
LP8868U-Q1 LP8868V-Q1 LP8868W-Q1 LP8868X-Q1 LP8868Y-Q1 LP8868Z-Q1 12-Pin Boost/Buck-Boost HVSSOPTop ViewFigure 5-4 12-Pin Boost/Buck-Boost HVSSOPTop View
Table 5-4 VSON Pin Functions for boost/buck-boost topology
PIN TYPE(1) DESCRIPTION
VSON Package NAME
1 VIN P Input power pin.
2 VCC P Internal LDO output pin. Connect with a 10V, 1μF capacitor to GND.
3 ADIM/HD I Analog dimming or hybrid dimming pin. Pull high for PWM dimming only, pull low for hybrid dimming, input PWM signal for analog dimming.
4 PWM/EN I PWM dimming or EN pin. Pull high for always on, pull low for disabling the device, input PWM signal for PWM dimming.
5 FAULT O Open drain output. Pull low when fault is detected.
6 TEMP I/O Thermal foldback pin. Put different resistor values to GND to set different thermal foldback behavior curves.
7 FSET I/O Switching frequency set pin, with range from 100kHz to 2.2MHz. Put different resistor values to GND for different switching frequencies.
8 COMP I/O Error-amplifier output. Connect capacitors to GND. Different capacitor values determine different soft start times and bandwidths.
9 OVP I Overvoltage detection pin. Put different resistor dividers to set the LED open detection thresholds.
10 CSN I LED current sense negative pin.
11 CSP I LED current sense positive pin.
12 SW P Switching node pin. Internally connected to the low-side MOSFET. Connect with the power inductor and the Schottky diode.
Pad Thermal Pad G Power ground pin and analog ground pin
(1) I = Input, O = Output, P = Supply, G = Ground
