Clock System (CS) and Clock Distribution

The clock system includes a 32-kHz crystal oscillator (XT1), an internal very-low-power low-frequency oscillator (VLO), an integrated 32-kHz RC oscillator (REFO), an integrated internal digitally controlled oscillator (DCO) that may use frequency-locked loop (FLL) locking with internal or external 32-kHz reference clock, and an on-chip asynchronous high-speed clock (MODOSC). The clock system is designed for cost-effective designs with minimal external components. A fail-safe mechanism is included for XT1. The clock system module offers the following clock signals.

  • Main Clock (MCLK): The system clock used by the CPU and all relevant peripherals accessed by the bus. All clock sources except MODOSC can be selected as the source with a predivider of 1, 2, 4, 8, 16, 32, 64, or 128.
  • Sub-Main Clock (SMCLK): The subsystem clock used by the peripheral modules. SMCLK derives from the MCLK with a predivider of 1, 2, 4, or 8. This means SMCLK is always equal to or less than MCLK.
  • Auxiliary Clock (ACLK): This clock is derived from the external XT1 clock, internal VLO or internal REFO clock up to 40 kHz.

All peripherals may have one or several clock sources depending on specific functionality. Table 9-8 lists the clock distribution used in this device.

Table 9-8 Clock Distribution
CLOCK SOURCE SELECT BITSMCLKSMCLKACLKMODCLKXT1CLKVLOCLKEXTERNAL PIN
Frequency rangeDC to 16 MHzDC to 16 MHzDC to 40 kHz5 MHz ±10%DC to 40 kHz10 kHz ±50%
CPUN/ADefault
FRAMN/ADefault
RAMN/ADefault
CRCN/ADefault
MPY32N/ADefault
I/ON/ADefault
TA0TASSEL10b01b11b00b (TA0CLK pin)
TA1TASSEL10b01b00b (TA1CLK pin)
TA2TASSEL10b01b11b00b (TA2CLK pin)
TA3TASSEL10b01b00b (TA3CLK pin)
TB0TBSSEL10b01b00b (TB0CLK pin)
eUSCI_A0UCSSEL10b or 11b01b00b (UCA0CLK pin)
eUSCI_A1UCSSEL10b or 11b01b00b (UCA1CLK pin)
eUSCI_B0UCSSEL10b or 11b01b00b (UCB0CLK pin)
eUSCI_B1UCSSEL10b or 11b01b00b (UCB1CLK pin)
WDTWDTSSEL00b01b10b
ADCADCSSEL10b or 11b01b00b
RTCRTCSS01b(1)01b(1)10b11b
Controlled by the RTCCKSEL bit in the SYSCFG2 register.

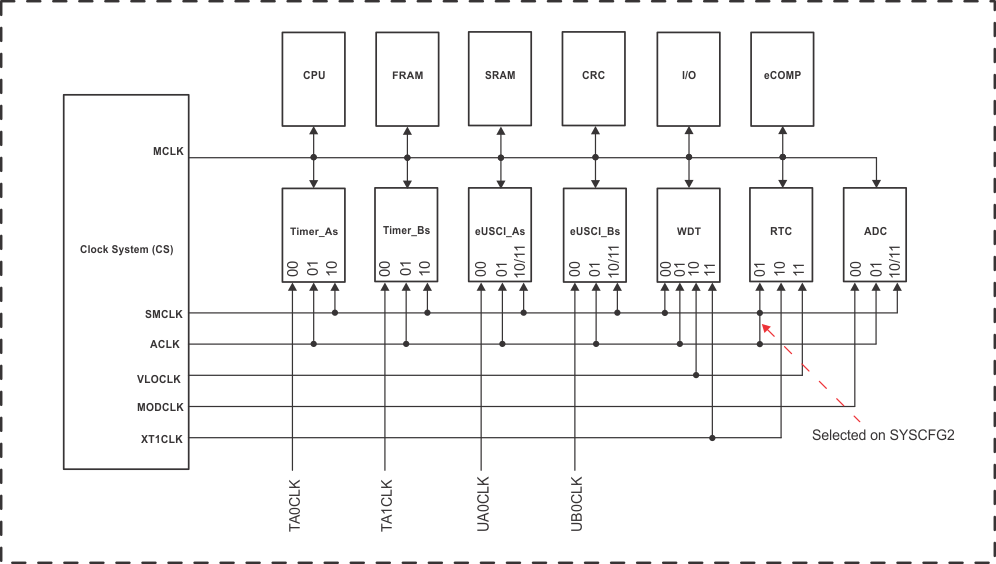

GUID-D8813E5D-A708-49A6-BD3C-6BA83270D641-low.gifFigure 9-1 Clock Distribution Block Diagram
