8.12.1.1 PMM, SVS and BOR

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VBOR, safe Safe BOR power-down level(1) 0.1 V
tBOR, safe Safe BOR reset delay(2) 10 ms
ISVSH,AM SVSH current consumption, active mode VCC = 3.6 V 1.5 µA
ISVSH,LPM SVSH current consumption, low-power modes VCC = 3.6 V 240 nA
VSVSH- SVSH power-down level(4) 1.71 1.80 1.87 V
VSVSH+ SVSH power-up level(4) 1.76 1.88 1.99 V
VSVSH_hys SVSH hysteresis 100 mV
tPD,SVSH, AM SVSH propagation delay, active mode 10 µs
tPD,SVSH, LPM SVSH propagation delay, low-power modes 100 µs
(1) A safe BOR can be correctly generated only if DVCC drops below this voltage before it rises.
(2) When an BOR occurs, a safe BOR can be correctly generated only if DVCC is kept low longer than this period before it reaches VSVSH+.

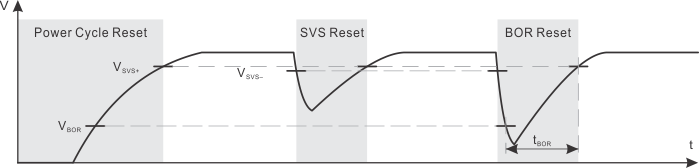

GUID-3F47EC05-4F06-4A34-9271-13EC63CCCD69-low.gif Figure 8-5 Power Cycle, SVS, and BOR Reset Conditions
