7 Parameter Measurement Information

OPA2830 10V Differential Configuration Test Circuit Figure 7-1 10V Differential Configuration Test Circuit
OPA2830 5V Differential Configuration Test Circuit Figure 7-2 5V Differential Configuration Test Circuit

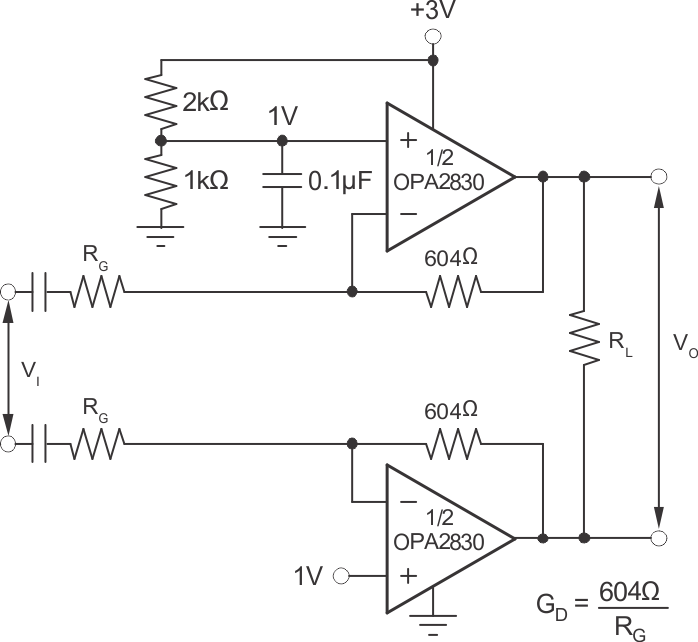

OPA2830 3V Differential Configuration Test Circuit Figure 7-3 3V Differential Configuration Test Circuit
