6 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily for the examples listed in the following table. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, ZO = 50Ω, tt < 2.5ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured individually with one input transition per measurement.

TEST S1 RL CL ΔV VCC
tPLZ, tPZL CLOSED 1kΩ 50pF 0.15V ≤ 2.5V
tPLZ, tPZL CLOSED 1kΩ 50pF 0.3V > 2.5V

SN74AC596-Q1 Load Circuit for Open-Drain Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-1 Load Circuit for Open-Drain Outputs
SN74AC596-Q1 Voltage Waveforms, Pulse DurationFigure 6-3 Voltage Waveforms, Pulse Duration

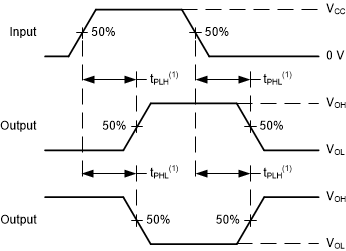

SN74AC596-Q1 Voltage Waveforms Propagation Delays
(1) The greater between tPLH and tPHL is the same as tpd.
Figure 6-5 Voltage Waveforms Propagation Delays

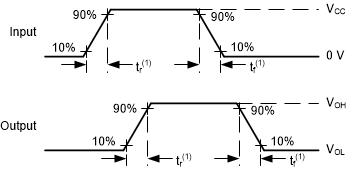

SN74AC596-Q1 Voltage Waveforms, Input and Output Transition Times
(1) The greater between tr and tf is the same as tt.
Figure 6-7 Voltage Waveforms, Input and Output Transition Times
SN74AC596-Q1 Load Circuit for Push-Pull Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-2 Load Circuit for Push-Pull Outputs

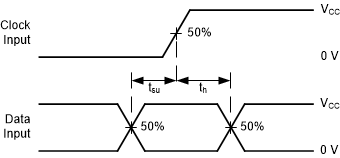

SN74AC596-Q1 Voltage Waveforms, Setup and Hold TimesFigure 6-4 Voltage Waveforms, Setup and Hold Times
SN74AC596-Q1 Voltage Waveforms Propagation Delays
(1) tPLZ is the same as tdis.
(2) tPZL is the same as ten.
Figure 6-6 Voltage Waveforms Propagation Delays
