Typical Characteristics

At TA = 25°C, fSPK_AMP = 384 kHz, input signal is 1 kHz Sine, unless otherwise noted. Filter used for Load Resistance is 30 µH, unless otherwise noted.

RL = 4 ΩFIN = 1 kHz
Figure 6-1 THD+N vs Output Power
RL = 4 ΩFIN = 6.667 kHz
Figure 6-3 THD+N vs Output Power
FIN = 20 Hz – 20 kHzPOUT = 0.1 WRL = 4 Ω + 30 µH
Figure 6-5 THD+N vs Frequency
FIN = 20 Hz – 20 kHzPOUT = 5 WRL = 4 Ω + 30 µH
Figure 6-7 THD+N vs Frequency
VBAT = 4.5 V – 16 V
Figure 6-9 Idle Channel Noise (A-Weighted) vs VBAT
RL = 4 Ω

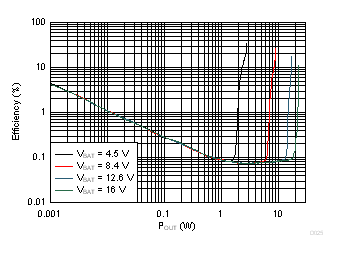

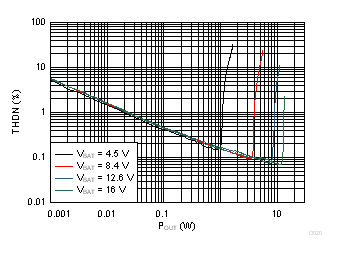

Figure 6-11 Max Output Power vs THD+N
RL = 4 ΩFIN = 1 kHz
Figure 6-13 Efficiency vs Output Power
GUID-40EA2CB2-11D3-4BFD-9233-4C9E1E7E3E56-low.gifFigure 6-15 VDD PSRR vs Frequency
VBAT = 4.5 V – 16 V
Figure 6-17 VBAT Idle Current vs VBAT
RL = 4 ΩFIN = 1 kHz
Figure 6-19 ISENSE THD+N vs Output Power
RL = 4 ΩPilot tone = 40 Hz, 34 dB
Figure 6-21 ISENSE Gain Linearity vs Output Power
FIN = 20 Hz – 20 kHzPOUT = 1 W
Figure 6-23 ISENSE THD+N vs Frequency
RL = 8 Ω
Figure 6-25 VSENSE THD+N vs Output Power
FIN = 20 Hz – 20 kHzPOUT = 1 W
Figure 6-27 VSENSE THD+N vs Frequency
RL = 4 Ω + 30 µHPilot tone = 40 Hz, 34 dB
Figure 6-29 V/ISENSE Gain Linearity vs Output Power
TA = –20°C – 70°CPilot tone = 40 Hz, 34 dB
Figure 6-31 VSENSE Gain Deviation vs Temperature
RL = 8 ΩFS = 1 kHzFIN = 1 kHz
Figure 6-2 THD+N vs Output Power
RL = 8 ΩFIN = 6.667 kHz
Figure 6-4 THD+N vs Output Power
FIN = 20 Hz – 20 kHzPOUT = 1 WRL = 4 Ω + 30 µH
Figure 6-6 THD+N vs Frequency
FIN = 20 Hz – 20 kHzPOUT = 1 WRL = 8 Ω + 30 µH

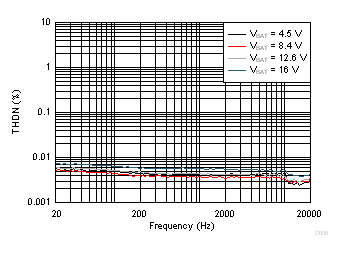

Figure 6-8 THD+N vs Frequency
FS = 48 kHzPOUT = 1 W
Figure 6-10 Amplitude vs Frequency
RL = 8 Ω
Figure 6-12 Max Output Power vs THD+N
RL = 8 ΩFIN = 1 kHz
Figure 6-14 Efficiency vs Output Power
GUID-D8D46D24-1E22-42D5-BE3E-59194B80D93A-low.gifFigure 6-16 VBAT PSRR vs Frequency
AVDD = 1.65 V – 1.95 VIV Sense Enabled
Figure 6-18 AVDD Idle Current vs AVDD
RL = 8 ΩFIN = 1 kHz
Figure 6-20 ISENSE THD+N vs Output Power
FIN = 20 Hz – 20 kHzPOUT = 1 W
Figure 6-22 ISENSE THD+N vs Frequency
RL = 4 Ω
Figure 6-24 VSENSE THD+N vs Output Power
RL = 4 ΩPilot tone = 40 Hz, 34 dB
Figure 6-26 Output Power vs VSENSE Linearity
FIN = 20 Hz – 20 kHzPOUT = 1 W
Figure 6-28 VSENSE THD+N vs Frequency
TA = –20°C – 70°CPilot tone = 40 Hz, 34 dB
Figure 6-30 ISENSE Gain Deviation vs Temperature
TA = –20°C – 70°CPilot tone = 40 Hz, 34 dB
Figure 6-32 V/ISENSE Gain Deviation vs Temperature
