6.4.7.3.2 Sequential Write

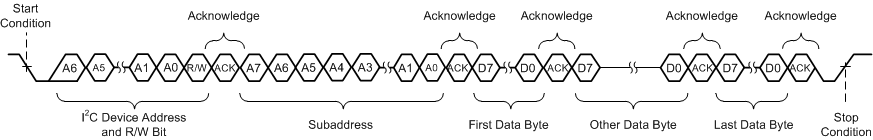

A sequential data-write transfer is identical to a single-byte data-write transfer except that multiple data bytes are transmitted by the controller to the device as shown in Figure 6-13. After receiving each data byte, the device responds with an acknowledge bit and the I2 subaddress is automatically incremented by one.

TAS5827 Sequential Write TransferFigure 6-13 Sequential Write Transfer
