6.1 Single-Supply Versus Split-Supply Test Circuits

Because the TLC27L1 is optimized for single-supply operation, circuit configurations used for the various tests often present some inconvenience since the input signal, in many cases, is offset from ground. Avoid this inconvenience by testing the device with split supplies and the output load tied to the negative rail. The following figures show a comparison of single-supply versus split-supply test circuits. The use of either circuit gives the same result.

TLC27L1 TLC27L1A Unity-Gain AmplifierFigure 6-1 Unity-Gain Amplifier

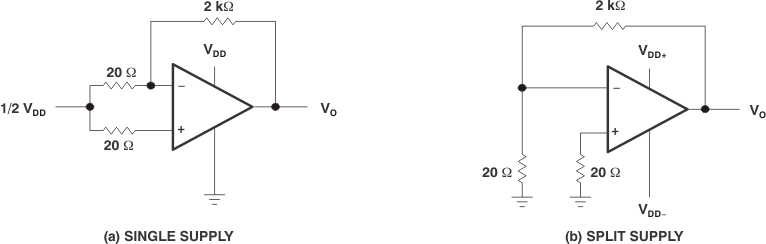

TLC27L1 TLC27L1A Noise-Test CircuitFigure 6-2 Noise-Test Circuit

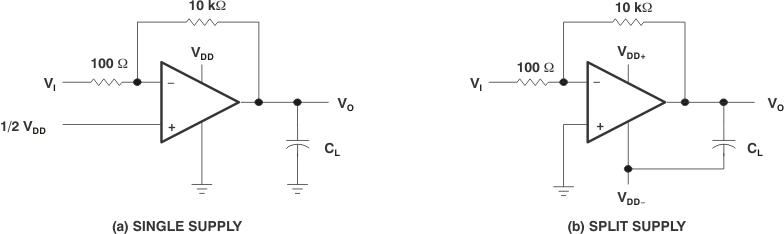

TLC27L1 TLC27L1A Gain-of-100 Inverting AmplifierFigure 6-3 Gain-of-100 Inverting Amplifier
