7.11 Typical Characteristics

at TA = 25°C, V+ = 2.75 V, V– = –2.75 V, RL = 10 kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

TLV9001 TLV9002 TLV9004 Offset Voltage Distribution Histogram
VS = 5 V
Figure 7-1 Offset Voltage Distribution Histogram
TLV9001 TLV9002 TLV9004 Input Offset Voltage vs Temperature
Figure 7-3 Input Offset Voltage vs Temperature
TLV9001 TLV9002 TLV9004 Offset Voltage vs Supply Voltage
Figure 7-5 Offset Voltage vs Supply Voltage
TLV9001 TLV9002 TLV9004 IB and IOS vs Common-Mode Voltage
Figure 7-7 IB and IOS vs Common-Mode Voltage

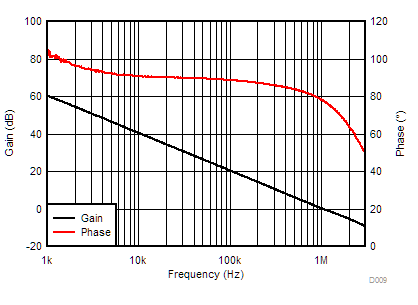

TLV9001 TLV9002 TLV9004 Open-Loop Gain and Phase vs Frequency
CL = 10 pF
Figure 7-9 Open-Loop Gain and Phase vs Frequency

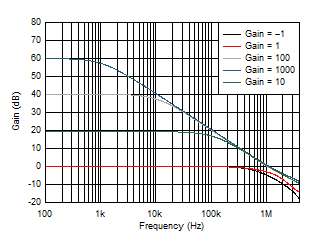

TLV9001 TLV9002 TLV9004 Closed-Loop Gain vs Frequency
CL = 10 pF
Figure 7-11 Closed-Loop Gain vs Frequency

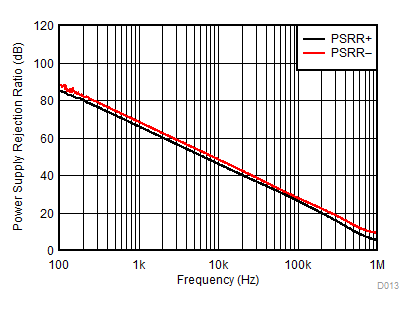

TLV9001 TLV9002 TLV9004 PSRR vs Frequency

Figure 7-13 PSRR vs Frequency

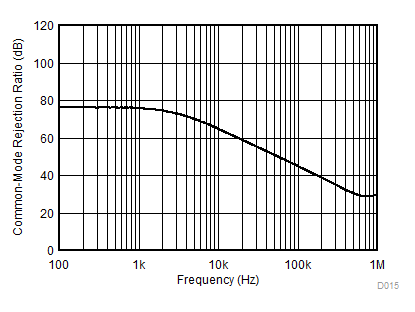

TLV9001 TLV9002 TLV9004 CMRR vs Frequency

Figure 7-15 CMRR vs Frequency
TLV9001 TLV9002 TLV9004 0.1-Hz to 10-Hz Integrated Voltage Noise
Figure 7-17 0.1-Hz to 10-Hz Integrated Voltage Noise

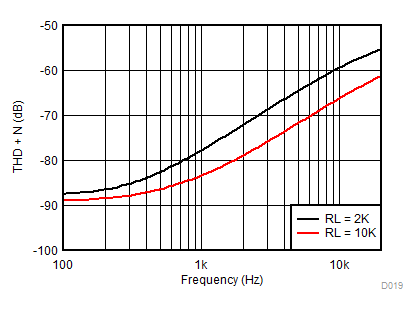

TLV9001 TLV9002 TLV9004 THD + N vs Frequency
VS = 5.5 VVCM = 2.5 VG = 1
BW = 80 kHzVOUT = 0.5 VRMS
Figure 7-19 THD + N vs Frequency

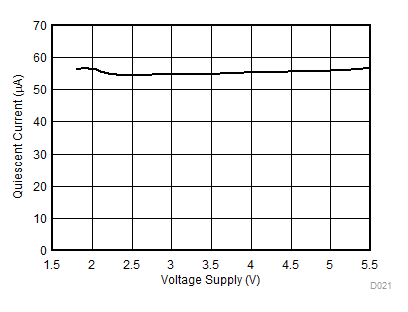

TLV9001 TLV9002 TLV9004 Quiescent Current vs Supply Voltage
Figure 7-21 Quiescent Current vs Supply Voltage
TLV9001 TLV9002 TLV9004 Open-Loop Output Impedance vs Frequency

Figure 7-23 Open-Loop Output Impedance vs Frequency
TLV9001 TLV9002 TLV9004 Small Signal Overshoot vs Capacitive Load
G = –1 VIN = 100 mVpp
Figure 7-25 Small Signal Overshoot vs Capacitive Load
TLV9001 TLV9002 TLV9004 No Phase Reversal
G = 1 VIN = 6.5 VPP
Figure 7-27 No Phase Reversal

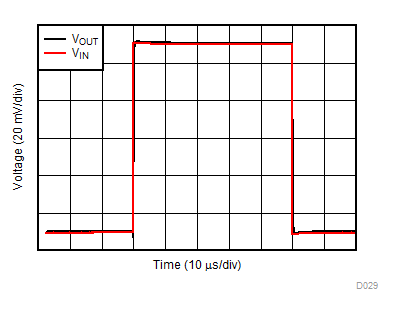

TLV9001 TLV9002 TLV9004 Small-Signal Step Response
G = 1VIN = 100 mVPPCL = 10 pF
Figure 7-29 Small-Signal Step Response
TLV9001 TLV9002 TLV9004 Large-Signal Settling Time (Negative)
G = 1CL = 100 pF2-V step
Figure 7-31 Large-Signal Settling Time (Negative)
TLV9001 TLV9002 TLV9004 Short-Circuit Current vs Temperature
Figure 7-33 Short-Circuit Current vs Temperature
TLV9001 TLV9002 TLV9004 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
Figure 7-35 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
TLV9001 TLV9002 TLV9004 Offset Voltage Drift Distribution Histogram
VS = 5 V, TA = –40°C to 125°C
Figure 7-2 Offset Voltage Drift Distribution Histogram
TLV9001 TLV9002 TLV9004 Offset Voltage vs Common-Mode
Figure 7-4 Offset Voltage vs Common-Mode
TLV9001 TLV9002 TLV9004 IB and IOS vs Temperature
Figure 7-6 IB and IOS vs Temperature

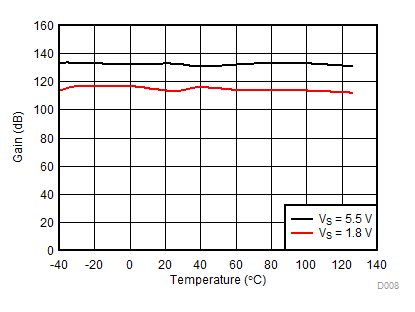

TLV9001 TLV9002 TLV9004 Open-Loop Gain vs Temperature
Figure 7-8 Open-Loop Gain vs Temperature
TLV9001 TLV9002 TLV9004 Open-Loop Gain vs Output Voltage

Figure 7-10 Open-Loop Gain vs Output Voltage
TLV9001 TLV9002 TLV9004 Output Voltage vs Output Current (Claw)

Figure 7-12 Output Voltage vs Output Current (Claw)

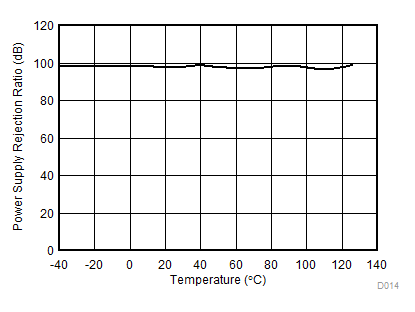

TLV9001 TLV9002 TLV9004 DC PSRR vs Temperature
VS = 1.8 V to 5.5 V
Figure 7-14 DC PSRR vs Temperature
TLV9001 TLV9002 TLV9004 DC CMRR vs Temperature
VCM = (V–) – 0.1 V to (V+) – 1.4 V
Figure 7-16 DC CMRR vs Temperature
TLV9001 TLV9002 TLV9004 Input Voltage Noise Spectral Density
Figure 7-18 Input Voltage Noise Spectral Density

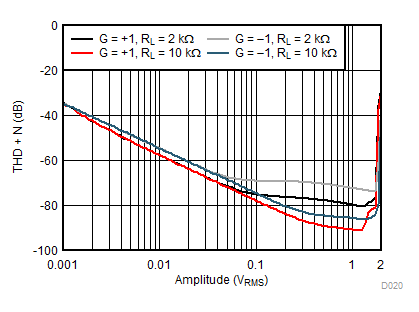

TLV9001 TLV9002 TLV9004 THD + N vs Amplitude
VS = 5.5 VVCM = 2.5 Vƒ = 1 kHz
G = 1BW = 80 kHz
Figure 7-20 THD + N vs Amplitude

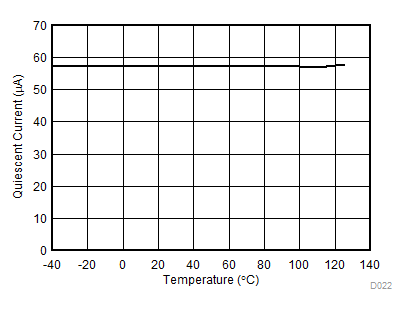

TLV9001 TLV9002 TLV9004 Quiescent Current vs Temperature
Figure 7-22 Quiescent Current vs Temperature

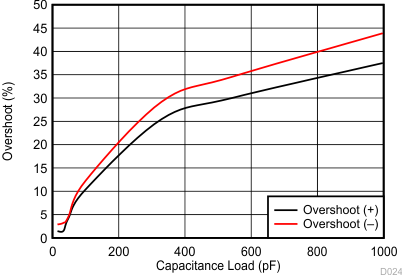

TLV9001 TLV9002 TLV9004 Small Signal Overshoot vs Capacitive Load
G = 1VIN = 100 mVpp
Figure 7-24 Small Signal Overshoot vs Capacitive Load

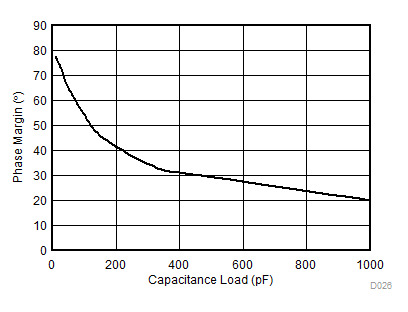

TLV9001 TLV9002 TLV9004 Phase Margin vs Capacitive Load

Figure 7-26 Phase Margin vs Capacitive Load

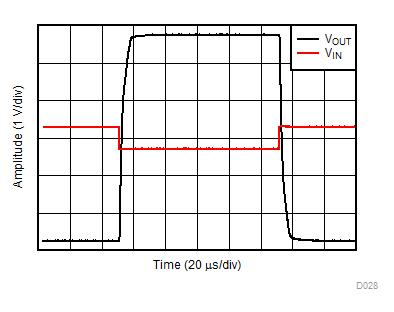

TLV9001 TLV9002 TLV9004 Overload Recovery
G = –10 VIN = 600 mVPP
Figure 7-28 Overload Recovery

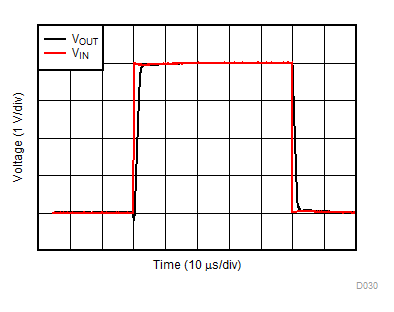

TLV9001 TLV9002 TLV9004 Large-Signal Step Response
G = 1VIN = 4 VPPCL = 10 pF
Figure 7-30 Large-Signal Step Response

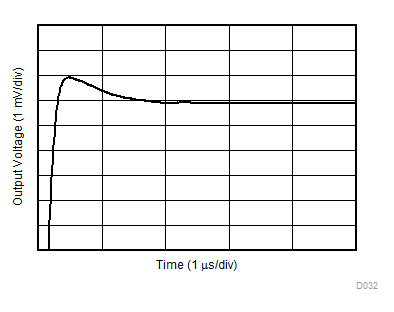

TLV9001 TLV9002 TLV9004 Large-Signal Settling Time (Positive)
G = 1CL = 100 pF2-V step
Figure 7-32 Large-Signal Settling Time (Positive)

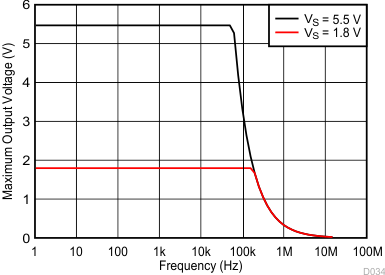

TLV9001 TLV9002 TLV9004 Maximum Output Voltage vs Frequency
Figure 7-34 Maximum Output Voltage vs Frequency

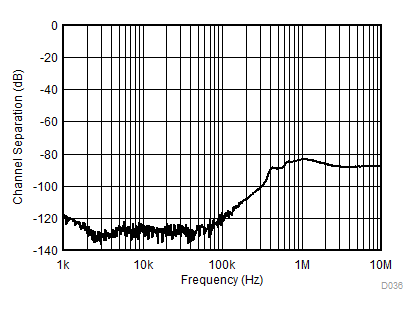

TLV9001 TLV9002 TLV9004 Channel Separation
Figure 7-36 Channel Separation
