8.9.6.1.1.2 McBSP Switching Characteristics
over recommended operating conditions (unless otherwise noted)
NO.PARAMETER(1)(2)MINMAXUNIT
M1tc(CKRX)Cycle time, CLKR/XCLKR/X int2Pns
M2tw(CKRXH)Pulse duration, CLKR/X highCLKR/X intD – 5(3)D + 5(3)ns
M3tw(CKRXL)Pulse duration, CLKR/X lowCLKR/X intC – 5(3)C + 5(3)ns
M4td(CKRH-FRV)Delay time, CLKR high to internal FSR validCLKR int04ns
CLKR ext327
M5td(CKXH-FXV)Delay time, CLKX high to internal FSX validCLKX int04ns
CLKX ext327
M6tdis(CKXH-DXHZ)Disable time, CLKX high to DX high impedance following last data bitCLKX int8ns
CLKX ext14
M7td(CKXH-DXV)Delay time, CLKX high to DX valid.CLKX int9ns
This applies to all bits except the first bit transmitted.CLKX ext28
Delay time, CLKX high to DX validDXENA = 0CLKX int8
CLKX ext14
Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY=01b or 10b) modesDXENA = 1CLKX intP + 8
CLKX extP + 14
M8ten(CKXH-DX)Enable time, CLKX high to DX drivenDXENA = 0CLKX int0ns
CLKX ext6
Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY=01b or 10b) modesDXENA = 1CLKX intP
CLKX extP + 6
M9td(FXH-DXV)Delay time, FSX high to DX validDXENA = 0FSX int8ns
FSX ext14
Only applies to first bit transmitted when in Data Delay 0 (XDATDLY=00b) mode.DXENA = 1FSX intP + 8
FSX extP + 14
M10ten(FXH-DX)Enable time, FSX high to DX drivenDXENA = 0FSX int0ns
FSX ext6
Only applies to first bit transmitted when in Data Delay 0 (XDATDLY=00b) modeDXENA = 1FSX intP
FSX extP + 6
(1) Polarity bits CLKRP = CLKXP = FSRP = FSXP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also inverted.
(2) 2P = 1/CLKG in ns.
(3) C = CLKRX low pulse width = P
D = CLKRX high pulse width = P

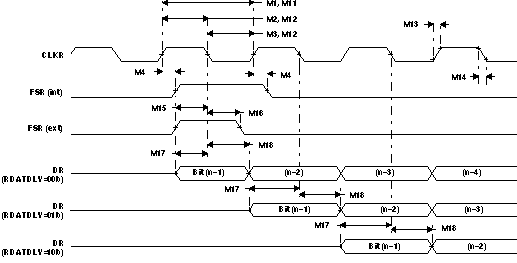

GUID-4BC3AE58-CC31-4798-94D5-C1B0C5A34DC9-low.gifFigure 8-39 McBSP Receive Timing
GUID-63F71D74-CECB-4915-A9D9-9A0E725AC9F9-low.gifFigure 8-40 McBSP Transmit Timing
