8.9.7 Enhanced Controller Area Network (eCAN) Module

The CAN module (eCAN-A) has the following features:

  • Fully compliant with CAN protocol, version 2.0B
  • Supports data rates up to 1 Mbps
  • Thirty-two mailboxes, each with the following properties:
    • Configurable as receive or transmit
    • Configurable with standard or extended identifier
    • Has a programmable receive mask
    • Supports data and remote frame
    • Composed of 0 to 8 bytes of data
    • Uses a 32-bit timestamp on receive and transmit message
    • Protects against reception of new message
    • Holds the dynamically programmable priority of transmit message
    • Employs a programmable interrupt scheme with two interrupt levels
    • Employs a programmable alarm on transmission or reception time-out
  • Low-power mode
  • Programmable wake-up on bus activity
  • Automatic reply to a remote request message
  • Automatic retransmission of a frame in case of loss of arbitration or error
  • 32-bit local network time counter synchronized by a specific message (communication in conjunction with mailbox 16)
  • Self-test mode
    • Operates in a loopback mode receiving its own message. A "dummy" acknowledge is provided, thereby eliminating the need for another node to provide the acknowledge bit.

Note:

For a SYSCLKOUT of 90 MHz, the smallest bit rate possible is 6.25 kbps.

The F2806x CAN has passed the conformance test per ISO/DIS 16845. Contact TI for test report and exceptions.

GUID-CDC96828-4C65-47E9-8E67-C14EB9700E9F-low.gifFigure 8-45 eCAN Block Diagram and Interface Circuit
Table 8-30 3.3-V eCAN Transceivers
PART NUMBERSUPPLY
VOLTAGE		LOW-POWER
MODE		SLOPE
CONTROL		VREFOTHERTA
SN65HVD2303.3 VStandbyAdjustableYes––40°C to 85°C
SN65HVD230Q3.3 VStandbyAdjustableYes––40°C to 125°C
SN65HVD2313.3 VSleepAdjustableYes––40°C to 85°C
SN65HVD231Q3.3 VSleepAdjustableYes––40°C to 125°C
SN65HVD2323.3 VNoneNoneNone––40°C to 85°C
SN65HVD232Q3.3 VNoneNoneNone––40°C to 125°C
SN65HVD2333.3 VStandbyAdjustableNoneDiagnostic Loopback–40°C to 125°C
SN65HVD2343.3 VStandby and SleepAdjustableNone––40°C to 125°C
SN65HVD2353.3 VStandbyAdjustableNoneAutobaud Loopback–40°C to 125°C
ISO10503–5.5 VNoneNoneNoneBuilt-in Isolation
Low Prop Delay
Thermal Shutdown
Fail-safe Operation
Dominant Time-Out		–55°C to 105°C

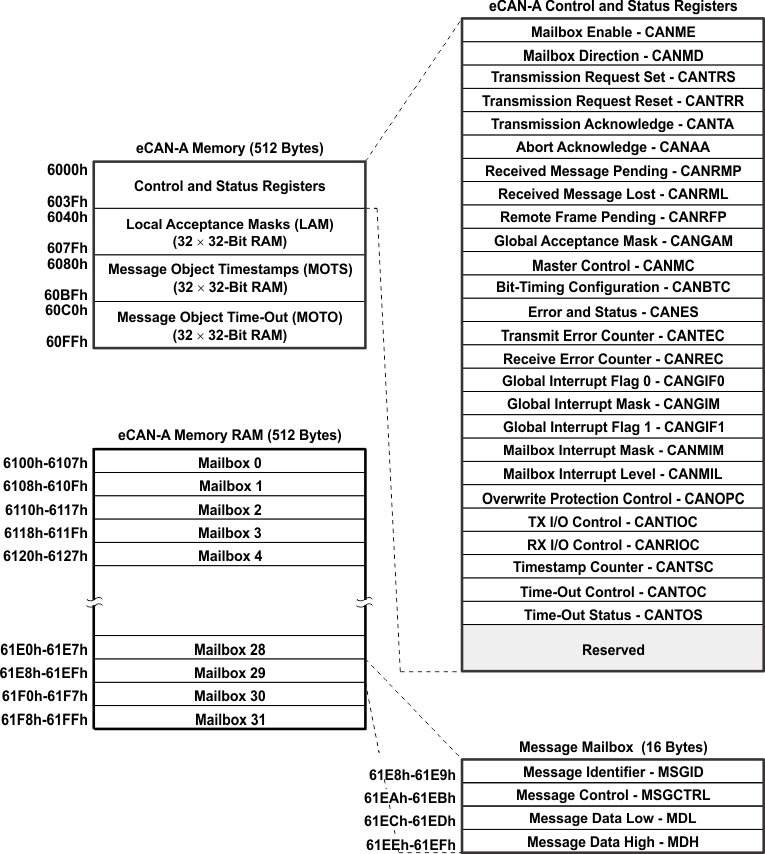

GUID-C546C560-EB66-4837-83D8-8453AB7C1D0A-low.gifFigure 8-46 eCAN-A Memory Map
Note:

If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

The CAN registers listed in Table 8-31 are used by the CPU to configure and control the CAN controller and the message objects. eCAN control registers only support 32-bit read/write operations. Mailbox RAM can be accessed as 16 bits or 32 bits. All 32-bit accesses are aligned to an even boundary.

Table 8-31 CAN Registers
REGISTER NAME(1)eCAN-A
ADDRESS		SIZE (×32)DESCRIPTION
CANME0x60001Mailbox enable
CANMD0x60021Mailbox direction
CANTRS0x60041Transmit request set
CANTRR0x60061Transmit request reset
CANTA0x60081Transmission acknowledge
CANAA0x600A1Abort acknowledge
CANRMP0x600C1Receive message pending
CANRML0x600E1Receive message lost
CANRFP0x60101Remote frame pending
CANGAM0x60121Global acceptance mask
CANMC0x60141Master control
CANBTC0x60161Bit-timing configuration
CANES0x60181Error and status
CANTEC0x601A1Transmit error counter
CANREC0x601C1Receive error counter
CANGIF00x601E1Global interrupt flag 0
CANGIM0x60201Global interrupt mask
CANGIF10x60221Global interrupt flag 1
CANMIM0x60241Mailbox interrupt mask
CANMIL0x60261Mailbox interrupt level
CANOPC0x60281Overwrite protection control
CANTIOC0x602A1TX I/O control
CANRIOC0x602C1RX I/O control
CANTSC0x602E1Timestamp counter (Reserved in SCC mode)
CANTOC0x60301Time-out control (Reserved in SCC mode)
CANTOS0x60321Time-out status (Reserved in SCC mode)
(1) These registers are mapped to Peripheral Frame 1.
