8.3 Memory Maps

In Figure 8-23 to Figure 8-25, the following apply:

  • Memory blocks are not to scale.
  • Peripheral Frame 0, Peripheral Frame 1, Peripheral Frame 2, and Peripheral Frame 3 memory maps are restricted to data memory only. A user program cannot access these memory maps in program space.
  • Protected means the order of "Write followed by Read" operations is preserved rather than the pipeline order. See the System Control and Interrupts chapter of the TMS320x2833x, TMS320x2823x Real-Time Microcontrollers Technical Reference Manual for more details.
  • Certain memory ranges are EALLOW protected against spurious writes after configuration.
  • Locations 0x38 0080–0x38 008F contain the ADC calibration routine. It is not programmable by the user.
  • If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

GUID-64B2AE89-0347-4B42-8C15-8CBFF1535EA9-low.gifFigure 8-23 F28335, F28333, F28235 Memory Map

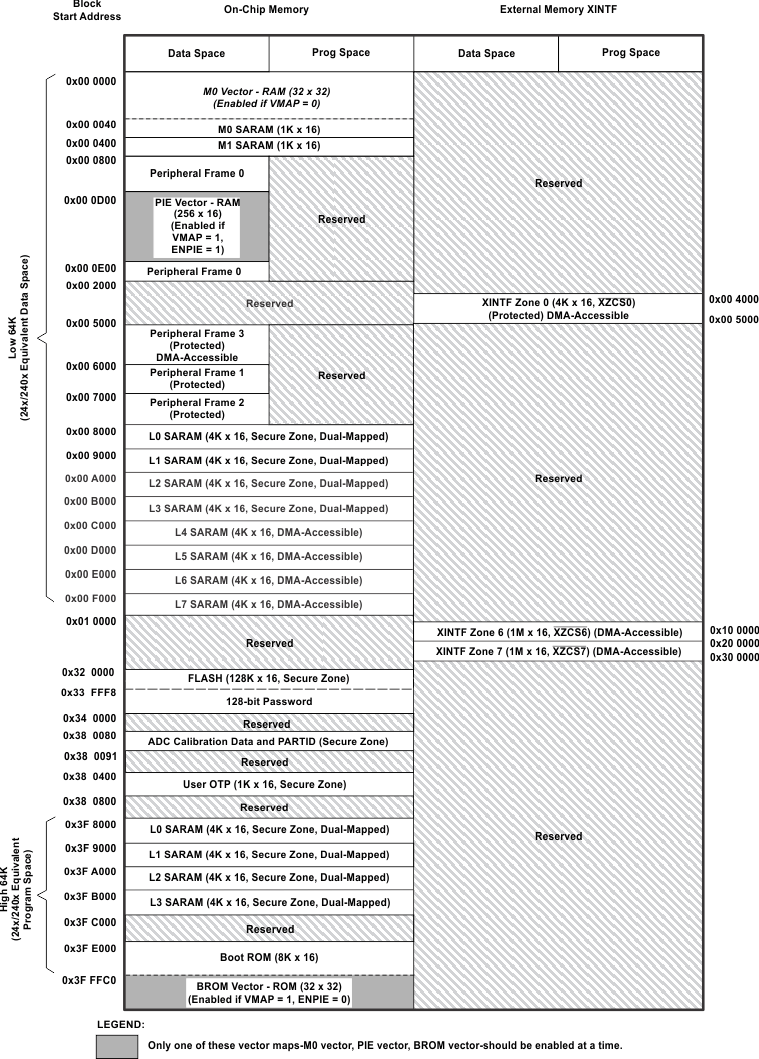

GUID-DC25AD73-03EE-4B10-A423-4B38096BE05F-low.gifFigure 8-24 F28334, F28234 Memory Map
GUID-C975D549-64D2-4A19-B4E9-F4E91CBEDE8D-low.gifFigure 8-25 F28332, F28232 Memory Map
Table 8-22 Addresses of Flash Sectors in F28335, F28333, F28235
ADDRESS RANGEPROGRAM AND DATA SPACE
0x30 0000 - 0x30 7FFFSector H (32K × 16)
0x30 8000 - 0x30 FFFFSector G (32K × 16)
0x31 0000 - 0x31 7FFFSector F (32K × 16)
0x31 8000 - 0x31 FFFFSector E (32K × 16)
0x32 0000 - 0x32 7FFFSector D (32K × 16)
0x32 8000 - 0x32 FFFFSector C (32K × 16)
0x33 0000 - 0x33 7FFFSector B (32K × 16)
0x33 8000 - 0x33 FF7FSector A (32K × 16)
0x33 FF80 - 0x33 FFF5Program to 0x0000 when using the
Code Security Module
0x33 FFF6 - 0x33 FFF7Boot-to-Flash Entry Point
(program branch instruction here)
0x33 FFF8 - 0x33 FFFFSecurity Password
(128-Bit) (Do Not Program to all zeros)
Table 8-23 Addresses of Flash Sectors in F28334, F28234
ADDRESS RANGE PROGRAM AND DATA SPACE
0x32 0000 - 0x32 3FFF Sector H (16K × 16)
0x32 4000 - 0x32 7FFF Sector G (16K × 16)
0x32 8000 - 0x32 BFFF Sector F (16K × 16)
0x32 C000 - 0x32 FFFF Sector E (16K × 16)
0x33 0000 - 0x33 3FFF Sector D (16K × 16)
0x33 4000 - 0x33 7FFFF Sector C (16K × 16)
0x33 8000 - 0x33 BFFF Sector B (16K × 16)
0x33 C000 - 0x33 FF7F Sector A (16K × 16)
0x33 FF80 - 0x33 FFF5Program to 0x0000 when using the
Code Security Module
0x33 FFF6 - 0x33 FFF7Boot-to-Flash Entry Point
(program branch instruction here)
0x33 FFF8 - 0x33 FFFFSecurity Password (128-Bit)
(Do Not Program to all zeros)
Table 8-24 Addresses of Flash Sectors in F28332, F28232
ADDRESS RANGE PROGRAM AND DATA SPACE
0x33 0000 - 0x33 3FFF Sector D (16K × 16)
0x33 4000 - 0x33 7FFFF Sector C (16K × 16)
0x33 8000 - 0x33 BFFF Sector B (16K × 16)
0x33 C000 - 0x33 FF7F Sector A (16K × 16)
0x33 FF80 - 0x33 FFF5Program to 0x0000 when using the Code Security Module
0x33 FFF6 - 0x33 FFF7Boot-to-Flash Entry Point (program branch instruction here)
0x33 FFF8 - 0x33 FFFFSecurity Password (128-Bit) (Do Not Program to all zeros)
Note:
  • When the code-security passwords are programmed, all addresses from 0x33FF80 to 0x33FFF5 cannot be used as program code or data. These locations must be programmed to 0x0000.
  • If the code security feature is not used, addresses 0x33FF80 to 0x33FFEF may be used for code or data. Addresses 0x33FFF0 to 0x33FFF5 are reserved for data and should not contain program code.

Table 8-25 shows how to handle these memory locations.

Table 8-25 Handling Security Code Locations
ADDRESSFLASH
CODE SECURITY ENABLEDCODE SECURITY DISABLED
0x33FF80 – 0x33FFEFFill with 0x0000Application code and data
0x33FFF0 – 0x33FFF5Reserved for data only

Peripheral Frame 1, Peripheral Frame 2, and Peripheral Frame 3 are grouped together to enable these blocks to be write/read peripheral block protected. The protected mode ensures that all accesses to these blocks happen as written. Because of the C28x pipeline, a write immediately followed by a read, to different memory locations, will appear in reverse order on the memory bus of the CPU. This can cause problems in certain peripheral applications where the user expected the write to occur first (as written). The C28x CPU supports a block protection mode where a region of memory can be protected so as to make sure that operations occur as written (the penalty is extra cycles are added to align the operations). This mode is programmable and by default, it will protect the selected zones.

The wait states for the various spaces in the memory map area are listed in the following Wait States table.

Table 8-26 Wait States
AREAWAIT STATES
(CPU)		WAIT STATES
(DMA)(1)		COMMENTS
M0 and M1 SARAMs0-waitFixed
Peripheral Frame 00-wait (writes)0-wait (reads)
1-wait (reads)No access (writes)
Peripheral Frame 30-wait (writes)0-wait (writes)Assumes no conflicts between CPU and DMA.
2-wait (reads)1-wait (reads)
Peripheral Frame 10-wait (writes)No accessCycles can be extended by peripheral generated ready.
2-wait (reads)Consecutive (back-to-back) writes to Peripheral Frame 1 registers will experience a 1-cycle pipeline hit (1-cycle delay)
Peripheral Frame 20-wait (writes)No accessFixed. Cycles cannot be extended by the peripheral.
2-wait (reads)
L0 SARAM0-waitNo accessAssumes no CPU conflicts
L1 SARAM
L2 SARAM
L3 SARAM
L4 SARAM0-wait data (reads)0-waitAssumes no conflicts between CPU and DMA.
L5 SARAM0-wait data (writes)
L6 SARAM1-wait program (reads)
L7 SARAM1-wait program (writes)
XINTFProgrammableProgrammableProgrammed through the XTIMING registers or extendable through external XREADY signal to meet system timing requirements.
1-wait is minimum wait states allowed on external waveforms for both reads and writes on XINTF.
0-wait minimum writes with write buffer enabled0-wait minimum writes with write buffer enabled0-wait minimum for writes assumes write buffer enabled and not full.
Assumes no conflicts between CPU and DMA. When DMA and CPU try simultaneously (conflict), a 1-cycle delay is added for arbitration.
OTPProgrammableNo accessProgrammed via the Flash registers.
1-wait minimum1-wait is minimum number of wait states allowed. 1-wait-state operation is possible at a reduced CPU frequency.
FLASHProgrammableNo accessProgrammed via the Flash registers.
1-wait Paged min0-wait minimum for paged access is not allowed
1-wait Random min
Random ≥ Paged
FLASH Password16-wait fixedNo accessWait states of password locations are fixed.
Boot-ROM1-waitNo access0-wait speed is not possible.
(1) The DMA has a base of four cycles/word.
