8.2.9 Enhanced Controller Area Network (eCAN) Modules (eCAN-A and eCAN-B)

The CAN module has the following features:

  • Fully compliant with ISO 11898-1 (CAN 2.0B)
  • Supports data rates up to 1 Mbps
  • Thirty-two mailboxes, each with the following properties:
    • Configurable as receive or transmit
    • Configurable with standard or extended identifier
    • Has a programmable receive mask
    • Supports data and remote frame
    • Composed of 0 to 8 bytes of data
    • Uses a 32-bit timestamp on receive and transmit message
    • Protects against reception of new message
    • Holds the dynamically programmable priority of transmit message
    • Employs a programmable interrupt scheme with two interrupt levels
    • Employs a programmable alarm on transmission or reception time-out
  • Low-power mode
  • Programmable wake-up on bus activity
  • Automatic reply to a remote request message
  • Automatic retransmission of a frame in case of loss of arbitration or error
  • 32-bit local network time counter synchronized by a specific message (communication in conjunction with mailbox 16)
  • Self-test mode
    • Operates in a loopback mode receiving its own message. A "dummy" acknowledge is provided, thereby eliminating the need for another node to provide the acknowledge bit.

Note:

For a SYSCLKOUT of 100 MHz, the smallest bit rate possible is 7.812 kbps.

For a SYSCLKOUT of 150 MHz, the smallest bit rate possible is 11.719 kbps.

The F2833x/F2823x CAN has passed the conformance test per ISO/DIS 16845. Contact TI for test report and exceptions.

GUID-F86AE1DA-F17B-43CF-90B2-38C19FD1CFAD-low.gifFigure 8-12 eCAN Block Diagram and Interface Circuit
Table 8-10 3.3-V eCAN Transceivers
PART NUMBER SUPPLY VOLTAGE LOW-POWER
MODE		 SLOPE
CONTROL		 VREF OTHER TA
SN65HVD230 3.3 V Standby Adjustable Yes – –40°C to 85°C
SN65HVD230Q 3.3 V Standby Adjustable Yes – –40°C to 125°C
SN65HVD231 3.3 V Sleep Adjustable Yes – –40°C to 85°C
SN65HVD231Q 3.3 V Sleep Adjustable Yes – –40°C to 125°C
SN65HVD232 3.3 V None None None – –40°C to 85°C
SN65HVD232Q 3.3 V None None None – –40°C to 125°C
SN65HVD233 3.3 V Standby Adjustable None Diagnostic Loopback –40°C to 125°C
SN65HVD234 3.3 V Standby and Sleep Adjustable None – –40°C to 125°C
SN65HVD235 3.3 V Standby Adjustable None Autobaud Loopback –40°C to 125°C
GUID-EA6A1606-8B87-481A-BA46-D41BC45B8BAE-low.gifFigure 8-13 eCAN-A Memory Map
Note:

If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

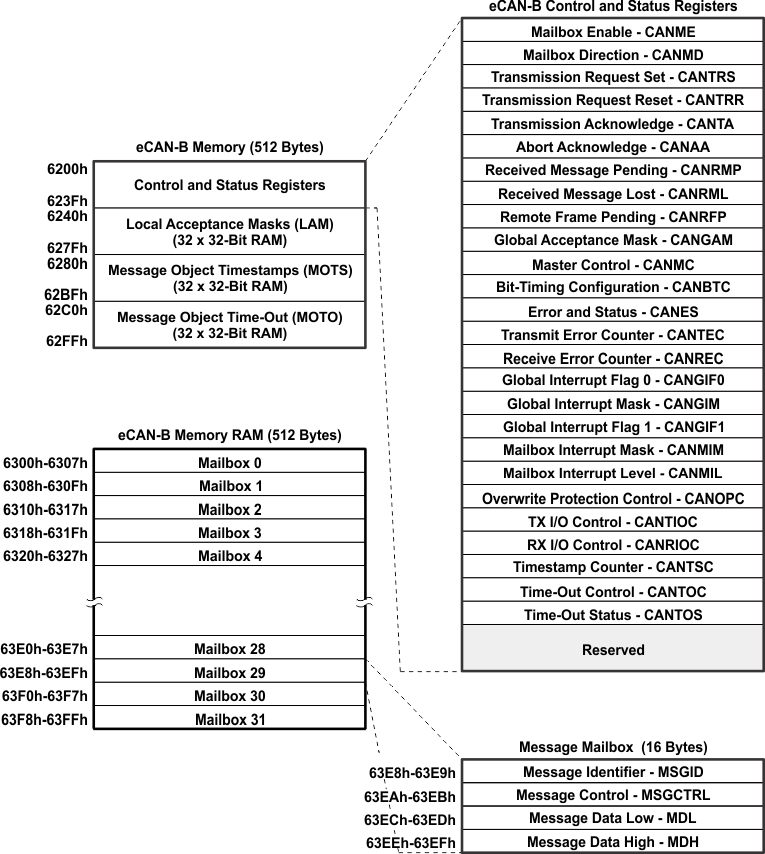

GUID-3735A02D-7F45-42FD-9F4E-46168E452538-low.gifFigure 8-14 eCAN-B Memory Map

The CAN registers listed in Table 8-11 are used by the CPU to configure and control the CAN controller and the message objects. eCAN control registers only support 32-bit read/write operations. Mailbox RAM can be accessed as 16 bits or 32 bits. Thirty-two-bit accesses are aligned to an even boundary.

Table 8-11 CAN Register Map
REGISTER
NAME(1)		eCAN-A
ADDRESS		eCAN-B
ADDRESS		SIZE
(x32)		DESCRIPTION
CANME0x60000x62001Mailbox enable
CANMD0x60020x62021Mailbox direction
CANTRS0x60040x62041Transmit request set
CANTRR0x60060x62061Transmit request reset
CANTA0x60080x62081Transmission acknowledge
CANAA0x600A0x620A1Abort acknowledge
CANRMP0x600C0x620C1Receive message pending
CANRML0x600E0x620E1Receive message lost
CANRFP0x60100x62101Remote frame pending
CANGAM0x60120x62121Global acceptance mask
CANMC0x60140x62141Master control
CANBTC0x60160x62161Bit-timing configuration
CANES0x60180x62181Error and status
CANTEC0x601A0x621A1Transmit error counter
CANREC0x601C0x621C1Receive error counter
CANGIF00x601E0x621E1Global interrupt flag 0
CANGIM0x60200x62201Global interrupt mask
CANGIF10x60220x62221Global interrupt flag 1
CANMIM0x60240x62241Mailbox interrupt mask
CANMIL0x60260x62261Mailbox interrupt level
CANOPC0x60280x62281Overwrite protection control
CANTIOC0x602A0x622A1TX I/O control
CANRIOC0x602C0x622C1RX I/O control
CANTSC0x602E0x622E1Timestamp counter (Reserved in SCC mode)
CANTOC0x60300x62301Time-out control (Reserved in SCC mode)
CANTOS0x60320x62321Time-out status (Reserved in SCC mode)
(1) These registers are mapped to Peripheral Frame 1.
