8.8 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 13.5 V, fSW = 400 kHz, L = 10 µH, COUT_CSP = 66 µF, COUT_CSN = 0.1 µF, CBUS = 1 µF, TA = 25 °C.

VCSN = 8 VINT = 5.1 kΩ
Figure 8-1 Non-Switching Quiescent Current
GUID-89BDC598-BC6F-4E03-B093-86680119956F-low.gifFigure 8-3 Precision Enable Threshold

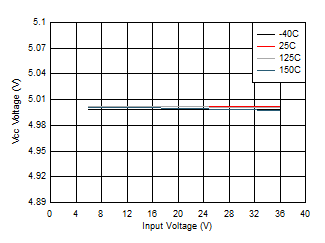

GUID-4BCD9227-15A0-4716-9F86-E1302156E7DB-low.gifFigure 8-5 VCC vs Input Voltage
GUID-AF80A2BE-9B93-44FD-865A-3249A4D235BA-low.gifFigure 8-7 High-side Current Limit vs Input Voltage
GUID-7427DAE3-1596-4543-BA44-EC896EB2F7DF-low.gifFigure 8-9 Low-side MOSFET on Resistance vs Junction Temperature

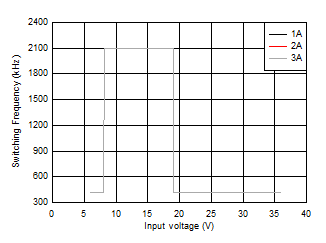

RT = 8.87 kΩ
Figure 8-11 Switching Frequency vs VIN Voltage
RSNS = 15 mΩ RSET = 300 Ω
Figure 8-13 External FET Current Limit vs Junction Temperature
VCSN/OUT = 5.1 V RIMON = 0 kΩ
Figure 8-15 LS_GD Gate Voltage vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω RIMON = 13 kΩ
Figure 8-17 Cable Compensation Voltage vs Load Current
GUID-F51FD466-9E5F-4CB8-B5C4-71D52191C121-low.gifFigure 8-19 DP_IN Overvoltage Protection Threshold vs Junction Temperature
Measured source with 10-cm cable
Figure 8-21 Bypassing the TPS2584x-Q1 Data Switch
GUID-783821CB-F63A-4998-844E-D7949925866C-low.gifFigure 8-23 Data Transmission Characteristics vs Frequency
GUID-E1A4678C-F770-47A6-BA57-AAB1FB1D24B9-low.gifFigure 8-25 On-state Cross-channel Isolation vs Frequency

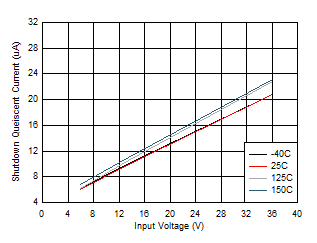

EN = 0 V
Figure 8-2 Shutdown Quiescent Current
GUID-A303D1A0-F964-484E-B3B0-985D7FE74E26-low.gifFigure 8-4 VIN UVLO Threshold
RIMON = 0 Ω
Figure 8-6 VCSN/OUT Voltage vs Junction Temperature

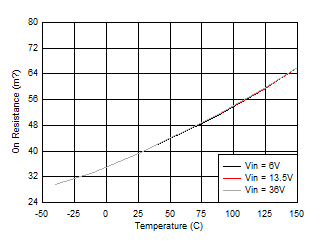

GUID-51FCB56B-E953-4FF7-8DAE-45EC43EC54F2-low.gifFigure 8-8 High-side MOSFET on Resistance vs Junction Temperature

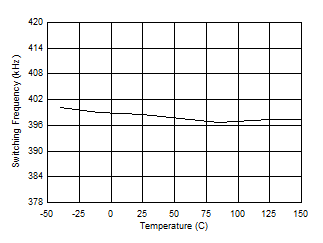

RT = 49.9 kΩ
Figure 8-10 Switching Frequency vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω
Figure 8-12 Buck Average Current Limit vs Junction Temperature
GUID-73A73584-1323-4B1A-95A0-6C0D5FA3E5FE-low.gifFigure 8-14 LS_GD Gate Source Current vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω RIMON = 13 kΩ
Figure 8-16 Cable Compensation Voltage vs Junction Temperature
GUID-871A04E5-C052-4600-9742-B61F2FFA0065-low.gifFigure 8-18 VBUS Overvoltage Protection Threshold vs Junction Temperature
GUID-7F8F876A-F782-44BD-921C-AA3F56D6A42C-low.gifFigure 8-20 DM_IN Overvoltage Protection Threshold vs Junction Temperature
Measured on TPS25830-Q1 EVM with 10-cm cable
Figure 8-22 Through the TPS2584x-Q1 Data Switch
GUID-7B0732A4-90A7-48BA-BA73-15D39A8E2105-low.gifFigure 8-24 Off-state Data-Switch Isolation vs Frequency
