8.2.4.3 Application Curves

VIN = 12 V 2.5 MHz Auto PFM/PWM Io = 1 A
VOUT = 1.2 V L = 2.2 μH TA = 25°C
Figure 8-66 Output Voltage Ripple
Auto PFM/PWM L = 2.2 μH Fsw = 1 MHz
Figure 8-68 Efficiency vs Output Current VOUT = 0.4 V
Auto PFM/PWM L = 1 μH Fsw = 2.5 MHz
Figure 8-70 Efficiency vs Output Current VOUT = 0.4 V
Auto PFM/PWM L = 2.2 μH Fsw = 1 MHz

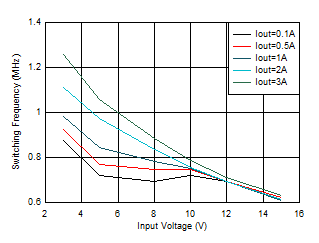

Figure 8-72 Switching Frequency vs Input Voltage VOUT = 0.4 V
Auto PFM/PWM L = 1 μH Fsw = 2.5 MHz
Figure 8-74 Switching Frequency vs Input Voltage VOUT = 0.4 V
Auto PFM/PWM L = 2.2 μH Fsw = 1 MHz

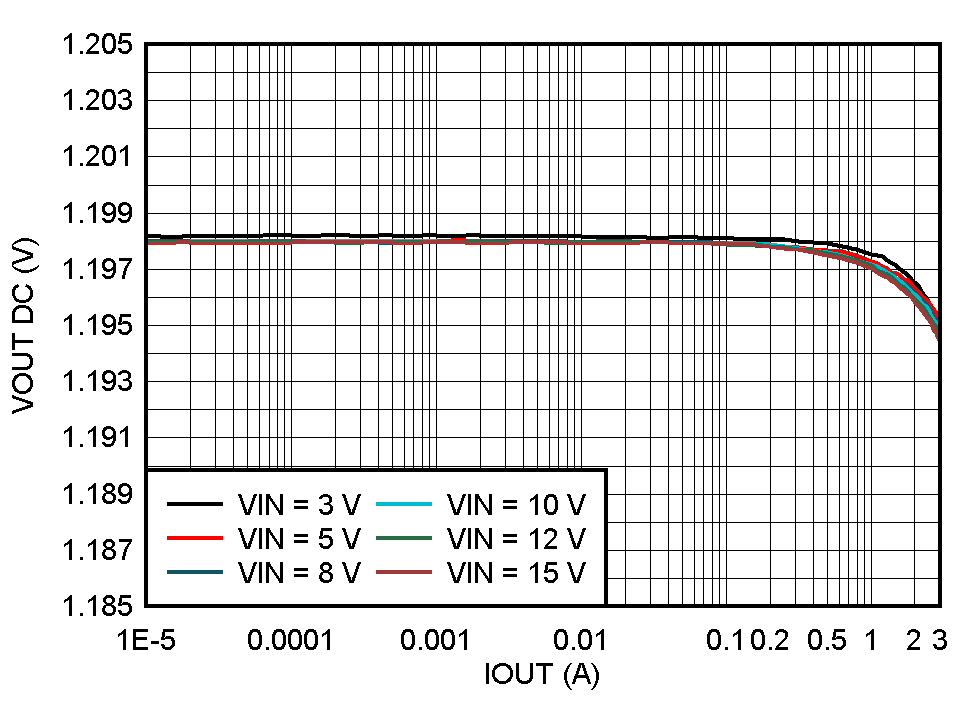

Figure 8-76 Output Voltage vs Output Current VOUT = 1.2 V
Auto PFM/PWM L = 1 μH Fsw = 2.5 MHz
Figure 8-78 Output Voltage vs Output Current VOUT = 1.2 V
VIN = 3 V - 17 V Temp = -40°C to 150°C
Figure 8-67 Output Voltage Accuracy - VSET Selected
FPWM L = 2.2 μH Fsw = 1 MHz
Figure 8-69 Efficiency vs Output Current VOUT = 0.4 V
FPWM L = 1 μH Fsw = 2.5 MHz
Figure 8-71 Efficiency vs Output Current VOUT = 0.4 V
FPWM L = 2.2 μH Fsw = 1 MHz
Figure 8-73 Switching Frequency vs Input Voltage VOUT = 0.4 V
FPWM L = 1 μH Fsw = 2.5 MHz
Figure 8-75 Switching Frequency vs Input Voltage VOUT = 0.4 V
FPWM L = 2.2 μH Fsw = 1 MHz
Figure 8-77 Output Voltage vs Output Current VOUT = 1.2 V
FPWM L = 1 μH Fsw = 2.5 MHz
Figure 8-79 Output Voltage vs Output Current VOUT = 1.2 V
