7.2 Typical Application

Figure 7-1 shows the basic circuit connections for the fixed voltage models. Figure 7-2 gives the connections for the adjustable output version (TPS73601).

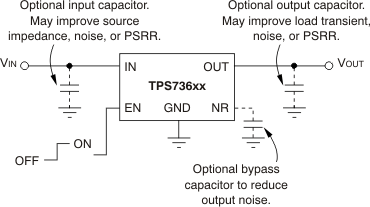

TPS736 Typical Application Circuit for Fixed-Voltage VersionsFigure 7-1 Typical Application Circuit for Fixed-Voltage Versions

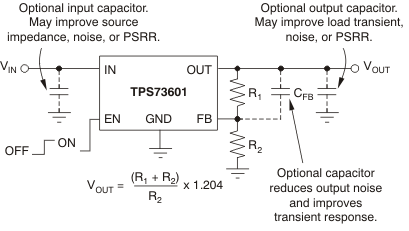

TPS736 Typical Application Circuit for Adjustable-Voltage Version Figure 7-2 Typical Application Circuit for Adjustable-Voltage Version
