5.8 Typical Characteristics: Supported ESR Range

Equivalent series resistance (ESR) refers to the total series resistance. This resistance includes the ESR of the capacitor, any series resistance added externally, and PCB trace resistance to CO.

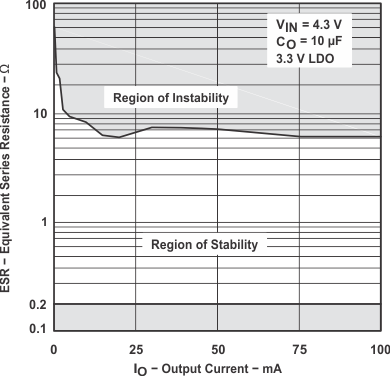

TPS769 TPS76933 Typical Regions of Stability ESR vs Output Current (Legacy Chip)

Figure 5-46 TPS76933 Typical Regions of Stability ESR vs Output Current (Legacy Chip)
TPS769 TPS76933 Typical Regions of Stability ESR vs Output Current (Legacy Chip)

Figure 5-48 TPS76933 Typical Regions of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-50 Typical Region of Stability ESR vs Output Current (New Chip)

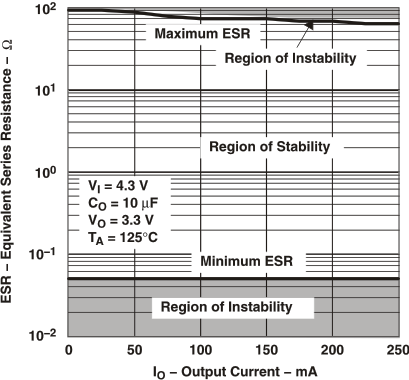

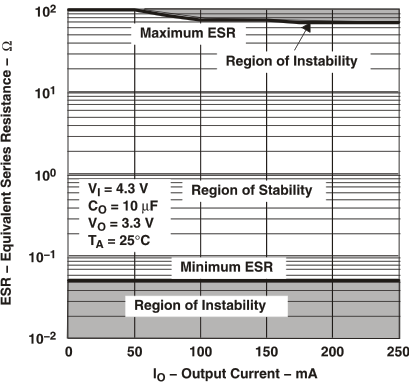

TPS769 Typical Region of Stability ESR vs Output Current (Legacy Chip)

Figure 5-52 Typical Region of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-54 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (Legacy Chip)

Figure 5-56 Typical Region of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-58 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-60 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-62 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-64 Typical Region of Stability ESR vs Output Current (New Chip)

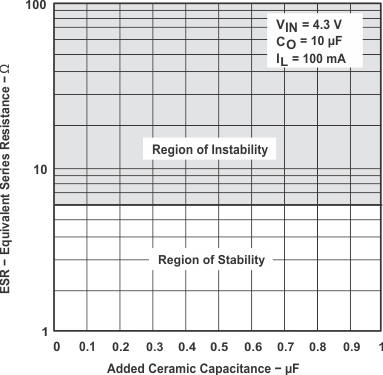

TPS769 TPS76933 Typical Regions of Stability ESR vs Added Ceramic Capacitance (Legacy Chip)

Figure 5-47 TPS76933 Typical Regions of Stability ESR vs Added Ceramic Capacitance (Legacy Chip)
TPS769 TPS76933 Typical Regions of Stability ESR vs Added Ceramic Capacitance (Legacy Chip)

Figure 5-49 TPS76933 Typical Regions of Stability ESR vs Added Ceramic Capacitance (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-51 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (Legacy Chip)

Figure 5-53 Typical Region of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-55 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-57 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (Legacy Chip)

Figure 5-59 Typical Region of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-61 Typical Region of Stability ESR vs Output Current (New Chip)
TPS769 Typical Region of Stability ESR vs Output Current (Legacy Chip)

Figure 5-63 Typical Region of Stability ESR vs Output Current (Legacy Chip)
TPS769 Typical Region of Stability ESR vs Output Current (New Chip)

Figure 5-65 Typical Region of Stability ESR vs Output Current (New Chip)
