Typical Characteristics

specified at TJ = –40°C to +150°C, VIN = 13.5V, IOUT = 100μA, COUT = 2.2µF, 1mΩ < COUT ESR < 2Ω, CIN = 1µF, and VEN = 2V (unless otherwise noted)

TPS7B86-Q1 Accuracy vs
                        Temperature

Figure 5-1 Accuracy vs Temperature
TPS7B86-Q1 Line
                        Regulation vs VIN
VOUT = 5V, IOUT = 5mA
Figure 5-3 Line Regulation vs VIN
TPS7B86-Q1 Load Regulation vs
                            IOUT
VOUT = 5V
Figure 5-5 Load Regulation vs IOUT
TPS7B86-Q1 Line Regulation at
                        100mA
COUT = 10µF, VOUT = 5V
Figure 5-7 Line Regulation at 100mA
TPS7B86-Q1 Dropout Voltage (VDO) vs IOUT
VIN = 20V
Figure 5-9 Dropout Voltage (VDO) vs IOUT
TPS7B86-Q1 PSRR vs Frequency and
                            IOUT
COUT = 10µF (X7R 50V), VOUT = 5V
Figure 5-11 PSRR vs Frequency and IOUT
TPS7B86-Q1 Noise vs Frequency
COUT = 10µF (X7R 50V), VOUT = 3.3V
Figure 5-13 Noise vs Frequency
TPS7B86-Q1 Line Transients
VOUT = 5V, IOUT = 1mA, VIN = 13.5V to 45V,
slew rate = 2.7V/µs, VEN = 3.3V
Figure 5-15 Line Transients
TPS7B86-Q1 Load Transient, No Load to
                        100mA
VOUT = 5V, IOUT = 0mA to 100mA, slew rate = 1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-17 Load Transient, No Load to 100mA
TPS7B86-Q1 Load Transient, 45mA to
                        105mA
VOUT = 5V, IOUT = 45mA to 105mA, slew rate = 0.1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-19 Load Transient, 45mA to 105mA
TPS7B86-Q1 Load
                        Transient, No Load to 150mA
VOUT = 5V, IOUT = 0mA to 150mA, slew rate = 1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-21 Load Transient, No Load to 150mA
TPS7B86-Q1 Load
                        Transient, 150mA to 350mA
VOUT = 5V, IOUT = 150mA to 350mA, slew rate = 0.1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-23 Load Transient, 150mA to 350mA
TPS7B86-Q1 Load
                        Transient, No Load to 500mA Rising Edge
VOUT = 5V, IOUT = 0mA to 500mA, slew rate = 1A/µs,
VEN = 3.3V, COUT = 10µF

Figure 5-25 Load Transient, No Load to 500mA Rising Edge
TPS7B86-Q1 Quiescent Current
                            (IQ) vs VIN

Figure 5-27 Quiescent Current (IQ) vs VIN
TPS7B86-Q1 Ground Current
                            (IGND) vs IOUT

Figure 5-29 Ground Current (IGND) vs IOUT
TPS7B86-Q1 Ground Current at
                        500µA


Figure 5-31 Ground Current at 500µA
TPS7B86-Q1 PG Threshold vs
                        Temperature

Figure 5-33 PG Threshold vs Temperature
TPS7B86-Q1 Undervoltage Lockout
                        (UVLO) Threshold vs Temperature

Figure 5-35 Undervoltage Lockout (UVLO) Threshold vs Temperature
TPS7B86-Q1 Output Voltage vs Injected
                        Current

Figure 5-37 Output Voltage vs Injected Current
TPS7B86-Q1 Stability, ESR vs
                            COUT

Figure 5-39 Stability, ESR vs COUT
TPS7B86-Q1 Line Regulation vs
                            VIN
VOUT = 5V, IOUT = 150mA
Figure 5-2 Line Regulation vs VIN
TPS7B86-Q1 Line
                        Regulation vs VIN
VOUT = 5V, IOUT = 1mA
Figure 5-4 Line Regulation vs VIN
TPS7B86-Q1 Line Regulation at
                        50mA
COUT = 10µF, VOUT = 5V
Figure 5-6 Line Regulation at 50mA
TPS7B86-Q1 Dropout Voltage
                            (VDO) vs IOUT
VIN = 3V
Figure 5-8 Dropout Voltage (VDO) vs IOUT
TPS7B86-Q1 Dropout Voltage
                            (VDO) vs VIN
IOUT = 450mA
Figure 5-10 Dropout Voltage (VDO) vs VIN

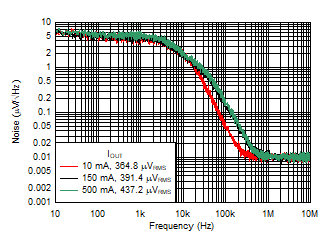

TPS7B86-Q1 Noise vs Frequency
COUT = 10µF (X7R 50V), VOUT = 5V
Figure 5-12 Noise vs Frequency
TPS7B86-Q1 PSRR vs Frequency and
                            VIN
COUT = 10µF (X7R 50V), IOUT = 500mA, VOUT = 5V
Figure 5-14 PSRR vs Frequency and VIN
TPS7B86-Q1 Line Transients
VOUT = 5V, IOUT = 100mA, VIN = 5.5V to 6.5V,
rise time = 1µs, VEN = 3.3V
Figure 5-16 Line Transients
TPS7B86-Q1 Load
                        Transient, No Load to 100mA Rising Edge
VOUT = 5V, IOUT = 0mA to 100mA, slew rate = 1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-18 Load Transient, No Load to 100mA Rising Edge
TPS7B86-Q1 Load
                        Transient, 45mA to 105mA Rising Edge
VOUT = 5V, IOUT = 45mA to 105mA, slew rate = 0.1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-20 Load Transient, 45mA to 105mA Rising Edge
TPS7B86-Q1 Load
                        Transient, No Load to 150mA Rising Edge
VOUT = 5V, IOUT = 0mA to 150mA, slew rate = 1A/µs,
VEN = 3.3V,
COUT = 10µF
Figure 5-22 Load Transient, No Load to 150mA Rising Edge

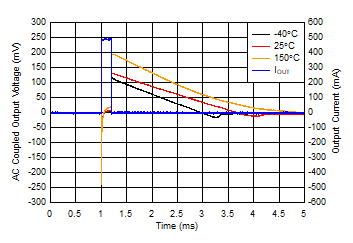

TPS7B86-Q1 Load
                        Transient, No Load to 500mA
VOUT = 5V, IOUT = 0mA to 500mA, slew rate = 1A/µs,
VEN = 3.3V, COUT = 10µF
Figure 5-24 Load Transient, No Load to 500mA
TPS7B86-Q1 Output Current Limit vs
                        Temperature
VIN = VOUT + 1V, VOUT = 90% × VOUT(NOM)
Figure 5-26 Output Current Limit vs Temperature
TPS7B86-Q1 Quiescent Current
                            (IQ) vs VIN
VOUT = 5V
Figure 5-28 Quiescent Current (IQ) vs VIN
TPS7B86-Q1 Ground Current at 100mA

Figure 5-30 Ground Current at 100mA
TPS7B86-Q1 EN Threshold vs
                        Temperature

Figure 5-32 EN Threshold vs Temperature
TPS7B86-Q1 Start-Up Plot Inrush
                        Current
VIN = 13.5V, VOUT = 5V, IOUT = 150mA, VEN = 3.3V, COUT = 10µF

Figure 5-34 Start-Up Plot Inrush Current
TPS7B86-Q1 Delay
                        Pin Current vs Temperature
VDELAY = 1V
Figure 5-36 Delay Pin Current vs Temperature
TPS7B86-Q1 Thermal Shutdown

Figure 5-38 Thermal Shutdown
