8.2.3.1 Input Ripple Current Cancellation with Natural Interleaving

Figure 8-2 through Figure 8-4 show the input current (M1= IL1 + IL2), Inductor Ripple Currents (IL1, IL2) versus rectified line voltage. From these graphs, it can be observed that natural interleaving reduces the overall magnitude of input (and output) ripple current caused by the individual inductor current ripples.

UCC28063 Inductor and Input Ripple Current at 85 VRMS at Peak of Line VoltageFigure 8-2 Inductor and Input Ripple Current at 85 VRMS at Peak of Line Voltage
UCC28063 Inductor and Input Ripple Current at VIN = 85 VRMS, POUT = 300 WFigure 8-4 Inductor and Input Ripple Current at VIN = 85 VRMS, POUT = 300 W

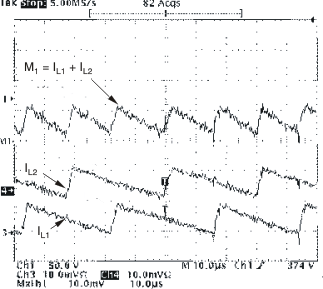

UCC28063 Inductor and Input Ripple Current at 265 VRMS Input at Peak Line VoltageFigure 8-3 Inductor and Input Ripple Current at 265 VRMS Input at Peak Line Voltage
