6.8 Typical Characteristics

VIN2 = 1.6 V

VOUT = Open

Figure 6-2 VIN1 Quiescent Current vs Input Voltage

VIN2 = 1.6 V

VOUT = Open

Figure 6-4 VIN1 Standby Current vs Input Voltage

VIN2 = 1.6 V

VOUT = Open

Figure 6-6 VIN1 Shutdown Current vs Input Voltage

I_OUT = 200 mA

Figure 6-8 Channel 1 On-Resistance vs Input Voltage

V_INx = 0 V

V_INy = Open

Figure 6-10 Reverse Leakage Current into VOUT

Figure 6-12 Output Voltage Drop vs Output Capacitance (MODE = 5 V, R_L = 10 Ω)

VIN1 = 1.6 V

VOUT = Open

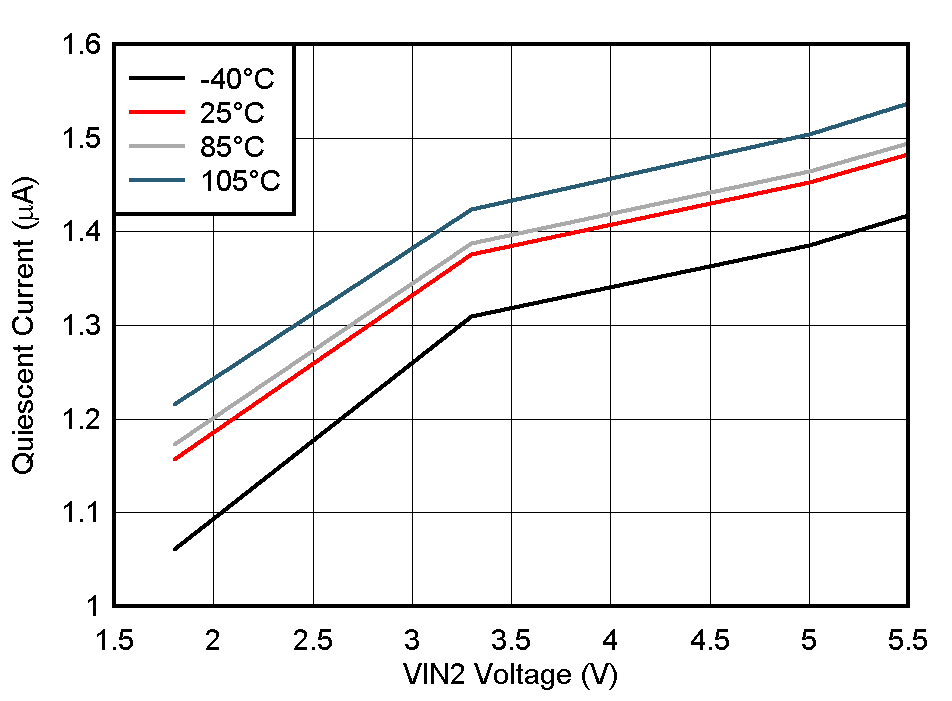

Figure 6-3 VIN2 Quiescent Current vs Input Voltage

VIN1 = 1.6 V

VOUT = Open

Figure 6-5 VIN2 Standby Current vs Input Voltage

VIN1 = 1.6 V

VOUT = 0 V

Figure 6-7 VIN2 Shutdown Current vs Input Voltage

I_OUT = 200 mA

Figure 6-9 Channel 2 On-Resistance vs Input Voltage

V_INx = 0 V

V_INy = Open

Figure 6-11 Reverse Leakage Current out of VINx

Figure 6-13 Manual Mode Switchover Behavior (MODE = 5 V, R_L = 10 Ω, CL = 10 uF)
