SWRS248E April   2020  – April 2025 AWR6443 , AWR6843

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Applications
  4. 3 Description
  5. 4 Functional Block Diagram
  6. 5 Device Comparison
    1. 5.1 Related Products
  7. 6 Terminal Configuration and Functions
    1. 6.1 Pin Diagram
    2. 6.2 Signal Descriptions
      1. 6.2.1 Signal Descriptions - Digital
      2. 6.2.2 Signal Descriptions - Analog
    3. 6.3 Pin Attributes
  8. 7 Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Power-On Hours (POH)
    4. 7.4  Recommended Operating Conditions
    5. 7.5  VPP Specifications for One-Time Programmable (OTP) eFuses
      1. 7.5.1 Recommended Operating Conditions for OTP eFuse Programming
      2. 7.5.2 Hardware Requirements
      3. 7.5.3 Impact to Your Hardware Warranty
    6. 7.6  Power Supply Specifications
    7. 7.7  Power Consumption Summary
    8. 7.8  Power Save Mode
    9. 7.9  RF Specification
    10. 7.10 CPU Specifications
    11. 7.11 Thermal Resistance Characteristics for FCBGA Package [ABL0161]
    12. 7.12 Timing and Switching Characteristics
      1. 7.12.1  Power Supply Sequencing and Reset Timing
      2. 7.12.2  Input Clocks and Oscillators
        1. 7.12.2.1 Clock Specifications
      3. 7.12.3  Multibuffered / Standard Serial Peripheral Interface (MibSPI)
        1. 7.12.3.1 Peripheral Description
        2. 7.12.3.2 MibSPI Transmit and Receive RAM Organization
          1. 7.12.3.2.1 SPI Timing Conditions
          2. 7.12.3.2.2 SPI Controller Mode Switching Parameters (CLOCK PHASE = 0, SPICLK = output, SPISIMO = output, and SPISOMI = input)
          3. 7.12.3.2.3 SPI Controller Mode Switching Parameters (CLOCK PHASE = 1, SPICLK = output, SPISIMO = output, and SPISOMI = input)
        3. 7.12.3.3 SPI Peripheral Mode I/O Timings
          1. 7.12.3.3.1 SPI Peripheral Mode Switching Parameters (SPICLK = input, SPISIMO = input, and SPISOMI = output) #GUID-F179918D-8747-4E9F-AE33-23F33763D52C/T4362547-70 #GUID-F179918D-8747-4E9F-AE33-23F33763D52C/T4362547-71 #GUID-F179918D-8747-4E9F-AE33-23F33763D52C/T4362547-73
        4. 7.12.3.4 Typical Interface Protocol Diagram (Peripheral Mode)
      4. 7.12.4  LVDS Interface Configuration
        1. 7.12.4.1 LVDS Interface Timings
      5. 7.12.5  General-Purpose Input/Output
        1. 7.12.5.1 Switching Characteristics for Output Timing versus Load Capacitance (CL)
      6. 7.12.6  Controller Area Network - Flexible Data-rate (CAN-FD)
        1. 7.12.6.1 Dynamic Characteristics for the CANx TX and RX Pins
      7. 7.12.7  Serial Communication Interface (SCI)
        1. 7.12.7.1 SCI Timing Requirements
      8. 7.12.8  Inter-Integrated Circuit Interface (I2C)
        1. 7.12.8.1 I2C Timing Requirements
      9. 7.12.9  Quad Serial Peripheral Interface (QSPI)
        1. 7.12.9.1 QSPI Timing Conditions
        2. 7.12.9.2 Timing Requirements for QSPI Input (Read) Timings
        3. 7.12.9.3 QSPI Switching Characteristics
      10. 7.12.10 ETM Trace Interface
        1. 7.12.10.1 ETMTRACE Timing Conditions
        2. 7.12.10.2 ETM TRACE Switching Characteristics
      11. 7.12.11 Data Modification Module (DMM)
        1. 7.12.11.1 DMM Timing Requirements
      12. 7.12.12 JTAG Interface
        1. 7.12.12.1 JTAG Timing Conditions
        2. 7.12.12.2 Timing Requirements for IEEE 1149.1 JTAG
        3. 7.12.12.3 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG
  9. 8 Detailed Description
    1. 8.1 Overview
    2. 8.2 Functional Block Diagram
    3. 8.3 Subsystems
      1. 8.3.1 RF and Analog Subsystem
        1. 8.3.1.1 Clock Subsystem
        2. 8.3.1.2 Transmit Subsystem
        3. 8.3.1.3 Receive Subsystem
      2. 8.3.2 Processor Subsystem
      3. 8.3.3 Automotive Interface
      4. 8.3.4 Host Interface
      5. 8.3.5 Main Subsystem Cortex-R4F
      6. 8.3.6 DSP Subsystem
      7. 8.3.7 Hardware Accelerator
    4. 8.4 Other Subsystems
      1. 8.4.1 ADC Channels (Service) for User Application
        1. 8.4.1.1 GP-ADC Parameter
    5. 8.5 Boot Modes
      1. 8.5.1 Flashing Mode
      2. 8.5.2 Functional Mode
  10. 9 Monitoring and Diagnostics
    1. 9.1 Monitoring and Diagnostic Mechanisms
      1. 9.1.1 Error Signaling Module
  11. 10Applications, Implementation, and Layout
    1. 10.1 Application Information
    2. 10.2 Reference Schematic
  12. 11Device and Documentation Support
    1. 11.1 Device Nomenclature
    2. 11.2 Tools and Software
    3. 11.3 Documentation Support
    4. 11.4 Support Resources
    5. 11.5 Trademarks
    6. 11.6 Electrostatic Discharge Caution
    7. 11.7 Glossary
  13.   Revision History
  14. 12Mechanical, Packaging, and Orderable Information
    1. 12.1 Packaging Information
    2. 12.2 Tray Information for ABL, 10.4 × 10.4 mm

6.1 Pin Diagram

Figure 6-1 shows the pin locations for the 161-pin FCBGA package. Figure 6-2, Figure 6-3, Figure 6-4, and Figure 6-5 show the same pins, but split into four quadrants.

AWR6443 AWR6843 Pin Diagram (Top View) Figure 6-1 Pin Diagram (Top View)

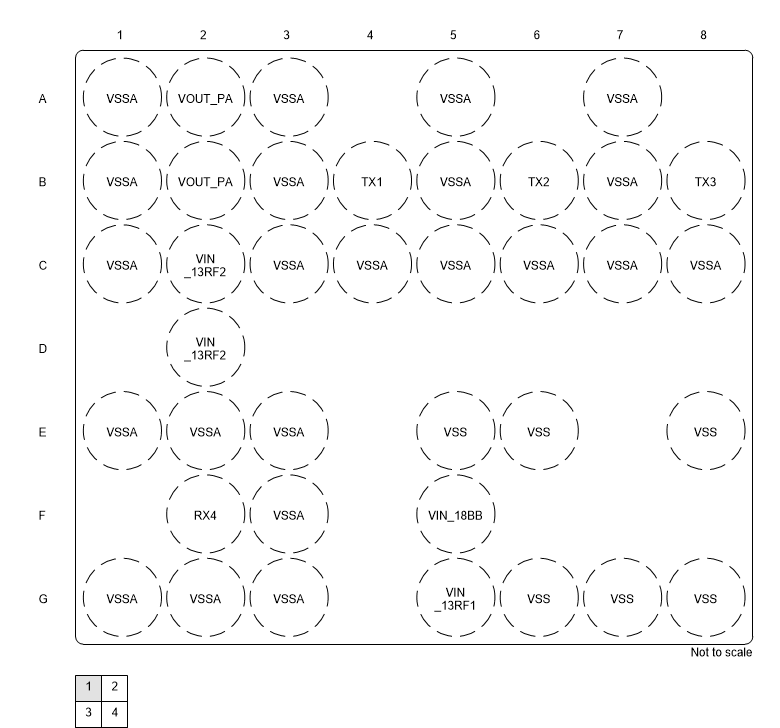

AWR6443 AWR6843 Top Left Quadrant Figure 6-2 Top Left Quadrant

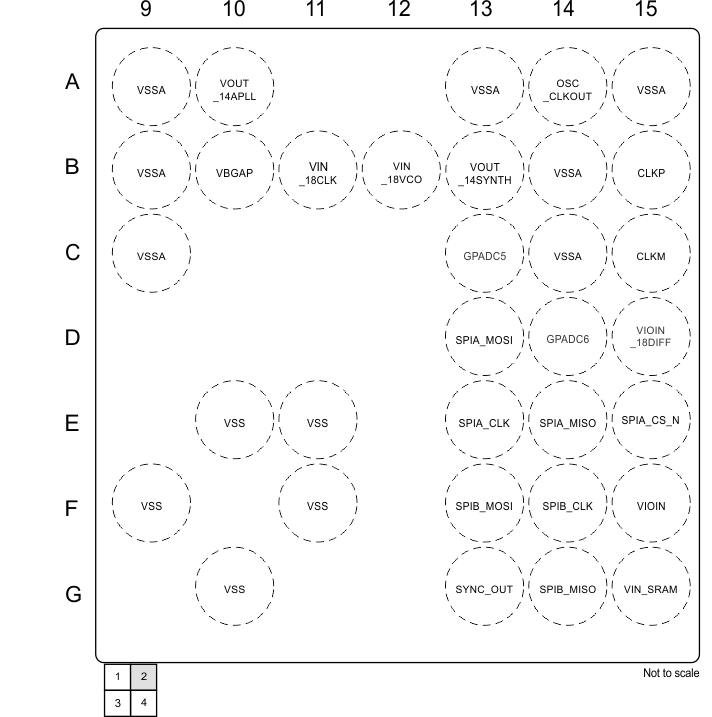

AWR6443 AWR6843 Top Right Quadrant Figure 6-3 Top Right Quadrant
AWR6443 AWR6843 Bottom Left Quadrant Figure 6-4 Bottom Left Quadrant

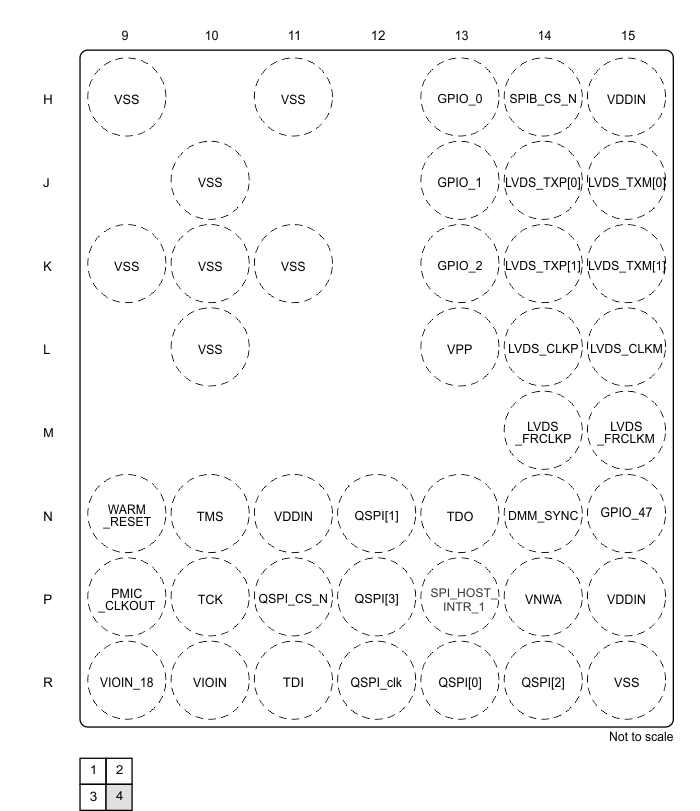

AWR6443 AWR6843 Bottom Right Quadrant Figure 6-5 Bottom Right Quadrant
