3.3.1 Hardware Configuration

  1. Make sure that the jumper configuration of the TIDM-1010 device is as described in Table 3-1.
  2. Connect the TIDM-1010 device to the LaunchPad using the BoosterPack site-two connector (J1, J3 and J4, J2). Make sure the TIDM-1010 device is connected to site two of the LaunchPad, as shown in Figure 3-4.
    TIDM-1010 TIDM-1010 Board Connected to Site Two of LaunchPad™ Figure 3-4 TIDM-1010 Board Connected to Site Two of LaunchPad™
  3. Connect the USB cable to the LaunchPad.
  4. Connect to the encoder:
    1. Prepare an adapter to connect the cable to the BiSS-C interface using the circular female to wire the leads adapter (see the BOM for the header used for the encoder connector, J7).
    2. Connect CLK+/CLK- to the BiSS-C MA+/MA- signal of the encoder.
    3. Connect DATA+/DATA- to the encoder's response SL+/SL-.
    4. Insert the header of the adapter created in the previous step to connect to Abs-Enc-1 (J7). The female end of the cable connects to the encoder. Figure 3-5 shows the pinout of J7.
      TIDM-1010 Abs-Enc-1 (J7) Pinout on TIDM-1010 Board Figure 3-5 Abs-Enc-1 (J7) Pinout on TIDM-1010 Board
  5. Supply 5-V DC and GND to J6, as shown in Figure 3-1. The board now looks like Figure 3-6. BoosterPack LED D18 turns on, which shows that the board has power.
    Note: For some encoders the BoosterPack may not provide an adequate current at power up. If the encoder fails to respond, try connecting a power supply external to the BoosterPack to the encoder. If this is done, connect a common ground to the BoosterPack.

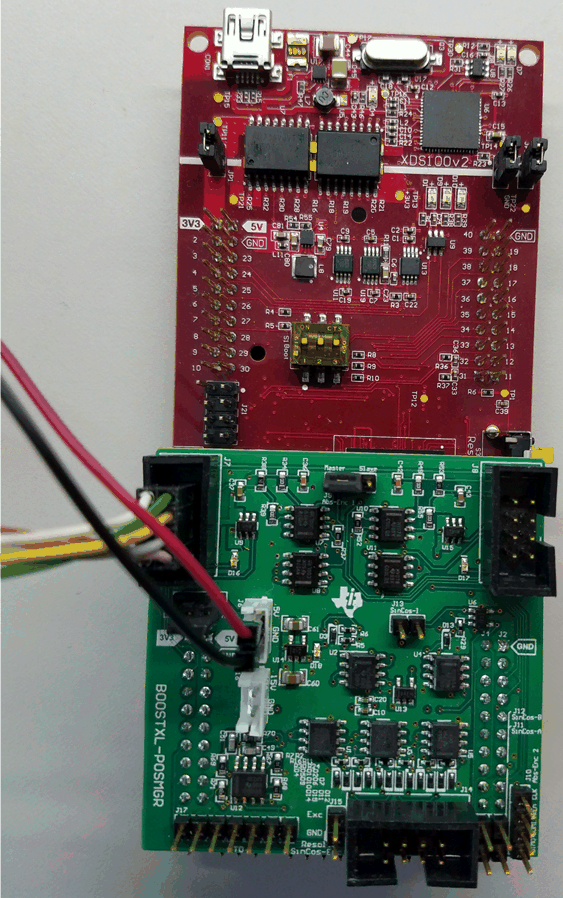

    TIDM-1010 TIDM-1010 Board Connected to BiSS-C Encoder Figure 3-6 TIDM-1010 Board Connected to BiSS-C Encoder
